Oxygen storage tank in nigeria - Victank

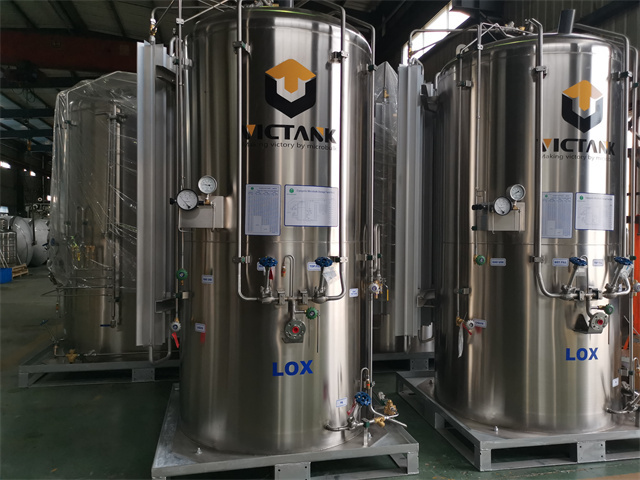

Microbulk Tank MB3000VHP
Inquire

We would like to extend our congratulations and offer our very best wishes for your continued success. We encourage you to make get hold of as we've been wanting for companions inside our venture. We are sure you'll uncover doing company with us not only fruitful but also profitable. We've been prepared to provide you with what you require.

Description

Microbulk systems are available for oxygen, nitrogen, argon, carbon dioxide, nitrous oxide(N2O), LNG. Microbulk tank is widely used in industrial, medical, welding and cutting field, etc.

Onsite microbulk storage from VICTANK helps you maximize safety, quality and efficiency in your operations:
• Mode change – no more swapping full-for-empty cylinder handling
• Dedicated cylinder set up for your application
• Product Range from high pressure gas to low pressure liquid delivery
• Built around application unlike high pressure bottle or liquid cylinder
• Ideal for liquid withdrawal
• Right sized for 1 fill per week or 1 fill per month simplifying inventory management
• With right sizing no need for excess cylinder inventory (leads to vent loss)

• fast pressure building speed

Various capacity optional 1000L 2000L,3000L,5000L; Working pressure 16bar ,25bar,35bar .

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (8)

Technical Datasheet

ASME standard 3000L-35bar

MB3000VHP

MAWP

Mpa(psi)

3.5(500)

Max. Pre-set Operating Press

Mpa(psi)

3.1(450)

Gross Volume

L(gal)

3031(801)

Net Volume

L(gal)

2789(737)

NER(Nitrogen)

%/Day

0.5

Tare Weight

kg(lbs)

2180(4806)

Gaseous Volume(Oxygen)

Nmˆ3(SCF)

2226(78623)

Gaseous Volume(Nitrogen)

Nmˆ3(SCF)

1793(63320)

Gaseous Volume(Argon)

Nmˆ3(SCF)

2178(76910)

Gas delivery rate

Nmˆ3/H(SCFH)

75(2649)

Pallet Width "A"

mm(inch)

1700(66.92)

Pallet Length "B"

mm(inch)

1700(66.92)

Tank Dameter "D"

mm(inch)

1508(59.37)

Overall Height "H"

mm(inch)

3160(124.41)

Material:

Inner vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.

3units 2m3 microbulk tank shipped by one 20OT container. (open top container)

3units 3m3 microbulk tank shipped by one 20OT container. (open top container)

2units 5m3 microbulk tank shipped by one 20OT container. (open top container)

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (9)

We always follow the principle "Quality Very first, Prestige Supreme". We have been fully committed to delivering our customers with competitively priced high-quality products and solutions, prompt delivery and experienced services for Oxygen storage tank in nigeria - Victank, The product will supply to all over the world, such as: Mozambique, Sierra Leone, azerbaijan, Turin, We have more than 100 works in the plant, and we also have a 15 guys work team to service our customers for before and after sales. Good quality is the key factor for the company to stand out from other competitors. Seeing is Believing, want more information? Just trial on its products!
