Lab 2m3 compact cryogenic tank in oman - Victank
Microbulk Tank MN5000MP
Inquire

The relentless pursuit of perfection. We welcome new and aged buyers from all walks of lifetime to make contact with us for potential small business associations and mutual success!

Description

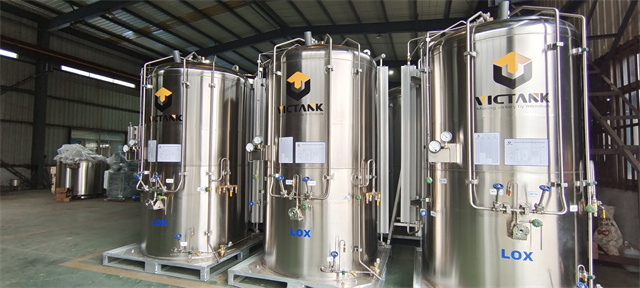

Microbulk is a modern concept where your gas is supplied by filling on-site vs. the traditional method by handling numbers of empty cylinders and dewars. Microbulk enjoys outstanding features mean exceptional performance.

Victank microbulk LNG satellite station is a smart and modular design for small LNG applications. The whole LNG station is built on skid, with LNG storage, regasification, pressure regulation, measurement, odorization and etc, which is very convenient for installation and operation.

Typical models are 1M3, 2M3, 3M3, 5M3, 7M3 and more.

Customization is available upon your specific requirements.

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (14)

Technical Datasheet

ASME standard 5000L-16bar

MN5000MP

MAWP

Mpa(psi)

1.6(230)

Max. Pre-set Operating Press

Mpa(psi)

0.8(116)

Gross Volume

L(gal)

5168(1365)

Net Volume

L(gal)

4651(1228)

NER(Nitrogen)

%/Day

0.4

Tare Weight

kg(lbs)

2613(5761)

Gaseous Volume(NG)

Nmˆ3(SCF)

6743(238127)

Gas delivery rate

Nmˆ3/H(SCFH)

100(3532)

Pallet Width "A"

mm(inch)

2100(82.67)

Pallet Length "B"

mm(inch)

2100(82.67)

Tank Diameter "D"

mm(inch)

1910(75.2)

Overall Height "H"

mm(inch)

3150(124.02)

Material:

Inner vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.
3units 2m3 microbulk tank shipped by one 20OT container. (open top container)
3units 3m3 microbulk tank shipped by one 20OT container. (open top container)
2units 5m3 microbulk tank shipped by one 20OT container. (open top container)

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (14)

Our clients have access to the best prices on the market when they order our products. Lab 2m3 compact cryogenic tank in oman - Victank, The product will supply to all over the world, such as: Karachi, Swansea, Turin, Burundi, Corporate goal: Customers' satisfaction is our goal, and sincerely hope to establish long-terms stable cooperative relations with customers to jointly develop the market. Building brilliant tomorrow together!Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
