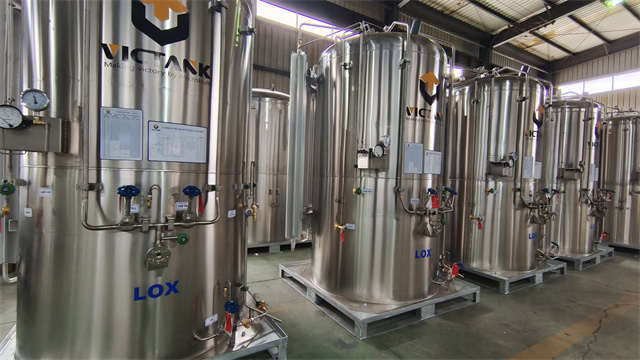

//a0.leadongcdn.cn/cloud/mrBpoKriRlkSoiqqqijmk/microbulk-tank-oxygen-tank-liquid-oxygen-liquid-nitrogen-liquid-argon-LCO2.jpg
Lab 25bar microbulk oxygen in mongolia - Victank
Microbulk Tank MB1000VHP
Inquire

Our mission is to become an innovative supplier of high-tech digital and communication devices by providing value added design, world-class manufacturing, and service capabilities for If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

Description

Microbulk, modern conception of gas supplied on-site

Microbulk tank is specially designed for efficient gas use for more longer retention time, more larger gas flow, more faster pressuring speed. The liquid lose can be rare even zero during a period of time because of the efficient thermal insulation structure.

Microbulk systems are available for oxygen, nitrogen, argon, carbon dioxide, nitrous oxide(N2O), LNG. Microbulk tank is widely used in industrial, medical, welding and cutting field, etc.

Various capacity optional 2000L,3000L,5000L; Working pressure 16bar ,25bar,35bar .

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (3)

Technical Datasheet

ASME standard 1000L-35bar

MB1000VHP

MAWP

Mpa(psi)

3.5(500)

Max.   Pre-set Operating Press

Mpa(psi)

3.1(450)

Gross   Volume

L(gal)

1040(275)

Net   Volume

L(gal)

957(253)

NER(Nitrogen)

%/Day

0.7

Tare   Weight

kg(lbs)

885(1951)

Gaseous   Volume(Oxygen)

Nmˆ3(SCF)

764(26977)

Gaseous   Volume(Nitrogen)

Nmˆ3(SCF)

615(21726)

Gaseous   Volume(Argon)

Nmˆ3(SCF)

747(26389)

Gas   delivery rate

Nmˆ3/H(SCFH)

40(1413)

Pallet   Width "A"

mm(inch)

1250(49.21)

Pallet   Length "B"

mm(inch)

1250(49.21)

Tank   Diameter "D"

mm(inch)

1108(43.62)

Overall   Height "H"

mm(inch)

2245(88.38)

Material:

Inner vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.

3units 2m3 microbulk tank shipped by one 20OT container. (open top container)

3units 3m3 microbulk tank shipped by one 20OT container. (open top container)

2units 5m3 microbulk tank shipped by one 20OT container. (open top container)

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (5)

We specialize in this field for several years, with the strength of, with good quality and pretty competitive price. Lab 25bar microbulk oxygen in mongolia - Victank, The product will supply to all over the world, such as: France, Burundi, Hyderabad, Surabaya, To achieve reciprocal advantages, our company is widely boosting our tactics of globalization in terms of communication with overseas customers, fast delivery, the best quality and long-term cooperation. Our company upholds the spirit of "innovation, harmony, team work and sharing, trails, pragmatic progress". Give us a chance and we will prove our capability. With your kind help, we believe that we can create a bright future with you together.
