Being supported by an advanced and specialist IT team, we could give technical support on pre-sales Through more than 8 years of business, we have accumulated rich experience and advanced technologies in the production of our products.

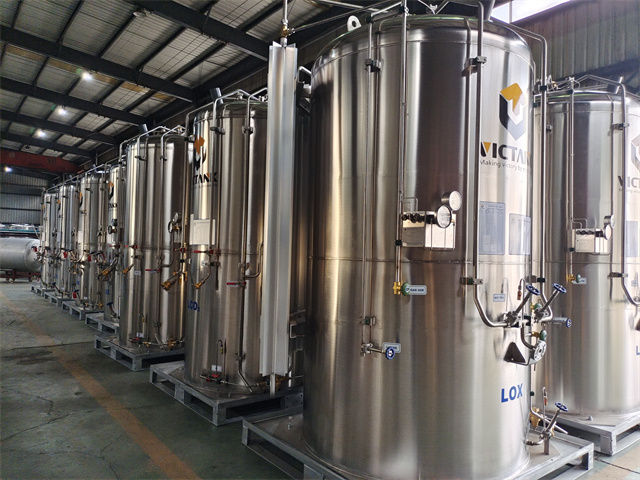

Microbulk tanks offer a better solution of end-to-end liquid gas delivery, replacing all your costly gas cylinders. It improves gas transportation, charging and storage management greatly. An ideal solution for medium size customers in industries, medical, cutting, lab and etc.
More reliable, safe, efficient and economical, compared with high pressure gas cylinders and dewar flasks.
Superior performance: bigger capacity, longer storage period, higher flow rate, fast pressure build-up. It is the best and only solution for your laser cutting of thick metal!
Horizontal microbulk tank is suitable for general container loading and also for where the installation space limited by the height.
ASME standard 3000L-16bar | MBH3000MP | |
MAWP | Mpa(psi) | 1.6(230) |
Max. Pre-set Operating Press | Mpa(psi) | 1.0(150) |
Gross Volume | L(gal) | 3031(801) |
Net Volume | L(gal) | 2879(761) |
NER(Nitrogen) | %/Day | 0.7 |
Gaseous Volume(Oxygen) | Nmˆ3(SCF) | 2299(81187) |
Gaseous Volume(Nitrogen) | Nmˆ3(SCF) | 1851(65385) |
Gaseous Volume(Argon) | Nmˆ3(SCF) | 2249(79417) |
Gas delivery rate | Nmˆ3/H(SCFH) | 75(2649) |
Pallet Width "A" | mm(inch) | 3200(125.98) |
Pallet Length "B" | mm(inch) | 1100(43.3) |
Tank Diameter "D" | mm(inch) | 1508(59.37) |
Overall Height "H" | mm(inch) | 1880(74.01) |
Width w/piping "w" | mm(inch) | 1826(71.89) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
1units shipped by 1x20GP container.
3units shipped by 1x40GP container.
