Home >> High quality 5m3 lo2 horizontal gas tank for sale - VictankHigh quality 5m3 lo2 horizontal gas tank

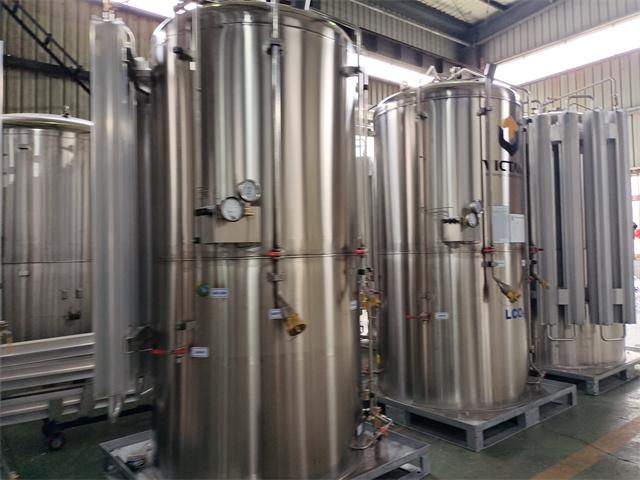

//a3.leadongcdn.cn/cloud/mkBpoKriRlkSoiqqpijij/microbulk-tank-oxygen-tank-liquid-oxygen-liquid-nitrogen-liquid-argon-LCO2.jpg
High quality 5m3 lo2 horizontal gas tank for sale - VictankHigh quality 5m3 lo2 horizontal gas tank
Portable Microbulk Tank for Transportation PCT2000HP
Inquire

Our enhancement depends around the sophisticated devices ,exceptional talents and repeatedly strengthened technology forces for Customers first! Whatever you require, we should do our utmost to help you. We warmly welcome customers from all over the world to cooperate with us for mutual development.

Description

Microbulk enable small and medium volume users to enjoy the benefits of on-site gas delivery. Microbulk Transportation and Storage Systems provide reliable, efficient and economical solutions for liquid nitrogen, oxygen, argon, CO2, N2O, and LNG.

Designed to replace high pressure gas cylinders, VICTANK eliminates:

•      waste and expense of full for empty gas cylinders

•      cylinder change-overs

•      residual gas losses

•      lost or damaged cylinders

•      cylinder inventory management

•      manual handling injuries

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, liquid gas tank, medical

Technical Datasheet

ASME standard 2000L-25bar

PCT2000HP

MAWP

Mpa(psi)

2.5(362)

Max. Pre-set Operating Press

Mpa(psi)

2.0(290)

Gross Volume

L(gal)

3031(801)

Net Volume

L(gal)

2789(737)

NER(Nitrogen)

%/Day

0.8

Tare Weight

kg(lbs)

1515(3340)

Gaseous Volume(Oxygen)

Nmˆ3(SCF)

1548(54655)

Gaseous Volume(Nitrogen)

Nmˆ3(SCF)

1246(44017)

Gaseous Volume(Argon)

Nmˆ3(SCF)

1514(53464)

Gas delivery rate

Nmˆ3/H(SCFH)


Pallet Width "L"

mm(inch)

3300(129.92)

Pallet Length "W"

mm(inch)

1600(62.99)

Tank Diameter "D"

mm(inch)

1308(51.5)

Overall Height "H"

mm(inch)

1700(66.93)

Material:

Inner  vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping


1unit shipped by 1x20GP container.

3units shipped by 1x40GP container.


We pursue the administration tenet of "Quality is exceptional, Assistance is supreme, Reputation is first", and will sincerely create and share success with all clients for High quality 5m3 lo2 horizontal gas tank for sale - VictankHigh quality 5m3 lo2 horizontal gas tank, The product will supply to all over the world, such as: Tanzania, Senegal, Maldives, Barcelona, Till now, the goods list has been updated regularly and attracted clients from around the globe. Detailed facts is often obtained in our web-site and you'll be served with premium quality consultant service by our after-sale group. They are going to help you get comprehensive acknowledge about our products and make a satisfied negotiation. Company go to to our factory in Brazil is also welcome at any time. Hope to obtain your inquiries for any pleased co-operation.
