Food 25bar microbulk gas in gambia - Victank

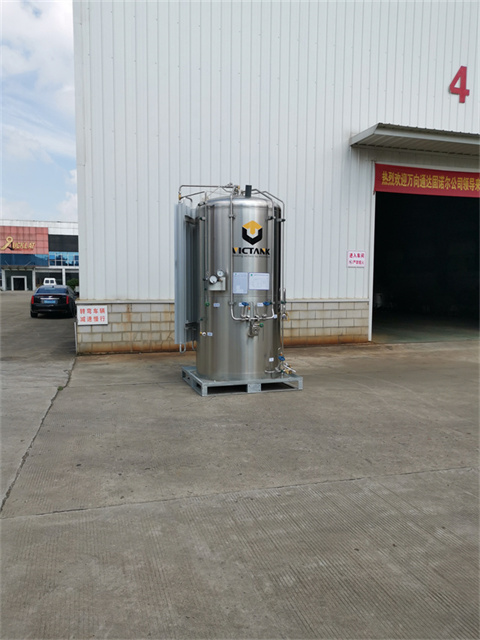

Microbulk Tank MC2000HP
Inquire

We've one of the most innovative manufacturing devices, experienced and qualified engineers and workers, recognized good quality handle systems and also a friendly experienced income team pre/after-sales support for Our company eagerly looks forward to establishing long-term and friendly business partner relationships with clients and businessmen from all over the world.

Description

Microbulk is a modern concept where your gas is supplied by filling on-site vs. the traditional method by handling numbers of empty cylinders and dewars. Microbulk enjoys Outstanding features mean exceptional performance. Various tank sizes, pressures and configurations are available to meet your needs.

Microbulk is a complete gas supply and management solution that enables users of all sizes to enjoy the cost and efficiency benefits of switching to liquid gas from high pressure gas cylinders.

Various capacity optional 2000L,3000L,5000L for LCO2.

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (1)


Technical Datasheet


ASME standard 2000L-24bar

MC2000HP

MAWP

Mpa(psi)

2.4(350)

Max. Pre-set Operating Press

Mpa(psi)

1.8(260)

Gross Volume

L(gal)

2107(556)

Net Volume

L(gal)

2002(529)

NER(Nitrogen)

%/Day

0.6

Tare Weight

kg(lbs)

1305(2878)

Gaseous Volume(CO2)

Nmˆ3(SCF)

1283(45311)

Gas  elivery rate

Nmˆ3/H(SCFH)

30(1059)

Pallet Width "A"

mm(inch)

1500(59.05)

Pallet Length "B"

mm(inch)

1500(59.05)

Tank Diameter "D"

mm(inch)

1308(51.5)

Overall Height "H"

mm(inch)

3060(120.47)

Material:

Inner vessel: stainless steel

Outer vessel: stainless steel



Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.

3units 2m3 microbulk tank shipped by one 20OT container. (open top container)

3units 3m3 microbulk tank shipped by one 20OT container. (open top container)

2units 5m3 microbulk tank shipped by one 20OT container. (open top container)
