Food 25bar micro bulk oxygen in dominica - Victank

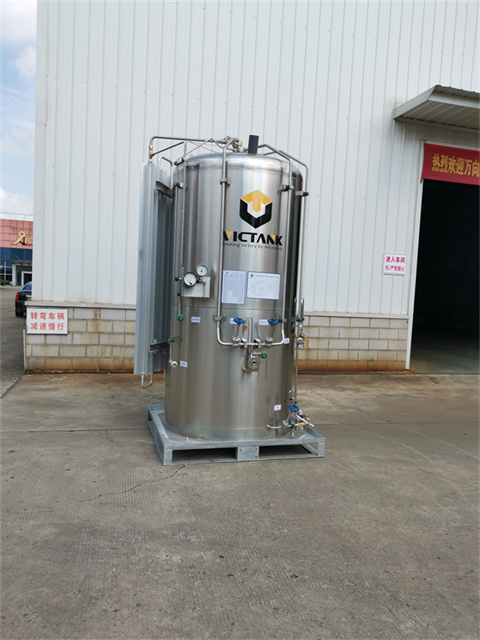

Microbulk Tank MB5000VHP
Inquire

We are sincerely looking for establishing a long-term business relationship with customers all circles, with mutual benefits and become one of the most reliable Chinese supplier for customers all over the world. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

Description

Microbulk is a complete gas supply and management solution that enables users of all sizes to enjoy the cost and efficiency benefits of switching to liquid gas from high pressure gas cylinders. Various tank sizes, pressures and configurations are available to meet your needs.

Microbulk systems are available for oxygen, nitrogen, argon, carbon dioxide, nitrous oxide(N2O), LNG. Microbulk tank is widely used in industrial, medical, welding and cutting field, etc.

Victank Superior performance: bigger capacity, longer storage period, higher flow rate, fast pressure build-up. It is the best and only solution for your laser cutting of thick metal!

Various capacity optional 2000L,3000L,5000L;Working pressure 16bar ,25bar,35bar .

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (10)


Technical Datasheet

ASME standard 5000L-35bar

MB5000VHP

MAWP

Mpa(psi)

3.5(500)

Max. Pre-set Operating Press

Mpa(psi)

3.1(450)

Gross Volume

L(gal)

5168(1365)

Net Volume

L(gal)

4755(1256)

NER(Nitrogen)

%/Day

0.4

Tare Weight

kg(lbs)

3265(6978)

Gaseous Volume(Oxygen)

Nmˆ3(SCF)

3796(134056)

Gaseous Volume(Nitrogen)

Nmˆ3(SCF)

3057(107963)

Gaseous Volume(Argon)

Nmˆ3(SCF)

3713(131134)

Gas delivery rate

Nmˆ3/H(SCFH)

100(3532)

Pallet Width "A"

mm(inch)

2100(82.67)

Pallet Length "B"

mm(inch)

2100(82.67)

Tank Diameter "D"

mm(inch)

1910(75.2)

Overall Height "H"

mm(inch)

3150(124.02)

Material:

Inner  vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.

3units 2m3 microbulk tank shipped by one 20OT container. (open top container)

3units 3m3 microbulk tank shipped by one 20OT container. (open top container)

2units 5m3 microbulk tank shipped by one 20OT container. (open top container)

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (11)

To create much more price for clients is our company philosophy; purchaser growing is our working chase for Food 25bar micro bulk oxygen in dominica - Victank, The product will supply to all over the world, such as: Ethiopia, Switzerland, Mombasa, moldova, We pay high attention to customer service, and cherish every customer. We have maintained a strong reputation in the industry for many years. We are honest and work on building a long-term relationship with our customers.
