Our corporation puts emphasis about the administration, the introduction of talented staff, plus the construction of team building, attempting hard to improve the quality and liability consciousness of team members. Our organization successfully attained IS9001 Certification and European CE Certification of Our customers mainly distributed in the North America, Africa and Eastern Europe. we will source top quality goods using the really aggressive selling price.

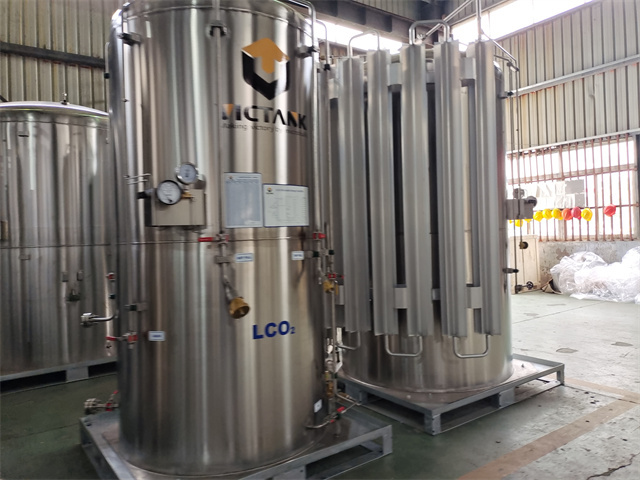

Microbulk is a complete gas supply and management solution that enables users of all sizes to enjoy the cost and efficiency benefits of switching to liquid gas from high pressure gas cylinders. Various tank sizes, pressures and configurations are available to meet your needs.
Microbulk systems are available for oxygen, nitrogen, argon, carbon dioxide, nitrous oxide(N2O), LNG. Microbulk tank is widely used in industrial, medical, welding and cutting field, etc.
Victank Superior performance: bigger capacity, longer storage period, higher flow rate, fast pressure build-up. It is the best and only solution for your laser cutting of thick metal!
Various capacity optional 2000L,3000L,5000L;Working pressure 16bar ,25bar,35bar .
ASME standard 5000L-35bar | MB5000VHP | |
MAWP | Mpa(psi) | 3.5(500) |
Max. Pre-set Operating Press | Mpa(psi) | 3.1(450) |
Gross Volume | L(gal) | 5168(1365) |
Net Volume | L(gal) | 4755(1256) |
NER(Nitrogen) | %/Day | 0.4 |
Tare Weight | kg(lbs) | 3265(6978) |
Gaseous Volume(Oxygen) | Nmˆ3(SCF) | 3796(134056) |
Gaseous Volume(Nitrogen) | Nmˆ3(SCF) | 3057(107963) |
Gaseous Volume(Argon) | Nmˆ3(SCF) | 3713(131134) |
Gas delivery rate | Nmˆ3/H(SCFH) | 100(3532) |
Pallet Width "A" | mm(inch) | 2100(82.67) |
Pallet Length "B" | mm(inch) | 2100(82.67) |
Tank Diameter "D" | mm(inch) | 1910(75.2) |
Overall Height "H" | mm(inch) | 3150(124.02) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
4units 1m3 microbulk tank shipped by one 20FT container.
3units 2m3 microbulk tank shipped by one 20OT container. (open top container)
3units 3m3 microbulk tank shipped by one 20OT container. (open top container)
2units 5m3 microbulk tank shipped by one 20OT container. (open top container)
Glad to hear that you're on the market for items. Food 1m3 pressure co2 tank in kuwait - Victank, The product will supply to all over the world, such as: Tajikistan, luzern, Guyana, Dubai, They're durable modeling and promoting effectively all over the world. Under no circumstances disappearing major functions in a quick time, it's a really should in your case of excellent good quality. Guided by the principle of "Prudence, Efficiency, Union and Innovation. the company make a terrific efforts to expand its international trade, raise its company profit and raise its export scale. We're confident that we've been planning to possess a vibrant prospect and to be distributed all over the world within the years to come.
