Co2 gas tank in oman - Victank

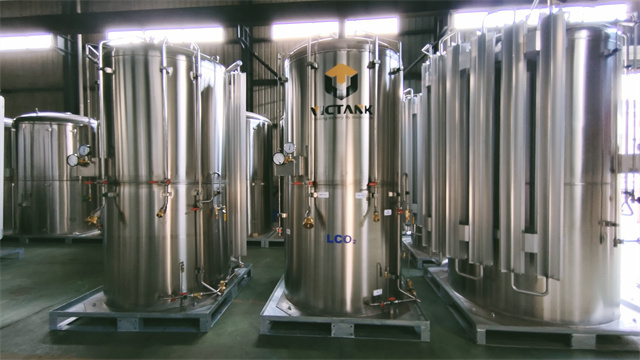

Microbulk Tank MC2000HP
Inquire

The relentless pursuit of perfection. Welcome buddies from all over the earth come to visit, tutorial and negotiate.

Description

Microbulk is a modern concept where your gas is supplied by filling on-site vs. the traditional method by handling numbers of empty cylinders and dewars. Microbulk enjoys Outstanding features mean exceptional performance. Various tank sizes, pressures and configurations are available to meet your needs.

Microbulk is a complete gas supply and management solution that enables users of all sizes to enjoy the cost and efficiency benefits of switching to liquid gas from high pressure gas cylinders.

Various capacity optional 2000L,3000L,5000L for LCO2.

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (1)


Technical Datasheet


ASME standard 2000L-24bar

MC2000HP

MAWP

Mpa(psi)

2.4(350)

Max. Pre-set Operating Press

Mpa(psi)

1.8(260)

Gross Volume

L(gal)

2107(556)

Net Volume

L(gal)

2002(529)

NER(Nitrogen)

%/Day

0.6

Tare Weight

kg(lbs)

1305(2878)

Gaseous Volume(CO2)

Nmˆ3(SCF)

1283(45311)

Gas  elivery rate

Nmˆ3/H(SCFH)

30(1059)

Pallet Width "A"

mm(inch)

1500(59.05)

Pallet Length "B"

mm(inch)

1500(59.05)

Tank Diameter "D"

mm(inch)

1308(51.5)

Overall Height "H"

mm(inch)

3060(120.47)

Material:

Inner vessel: stainless steel

Outer vessel: stainless steel



Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.

3units 2m3 microbulk tank shipped by one 20OT container. (open top container)

3units 3m3 microbulk tank shipped by one 20OT container. (open top container)

2units 5m3 microbulk tank shipped by one 20OT container. (open top container)

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (1)

Good quality comes to start with; service is foremost; organization is cooperation" is our enterprise philosophy which is regularly observed and pursued by our firm for Co2 gas tank in oman - Victank, The product will supply to all over the world, such as: Lahore, Turkmenistan, Frankfurt, Surabaya, We have a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment.
