5m3 lo2 steel tank oxygen in bahamas - Victank

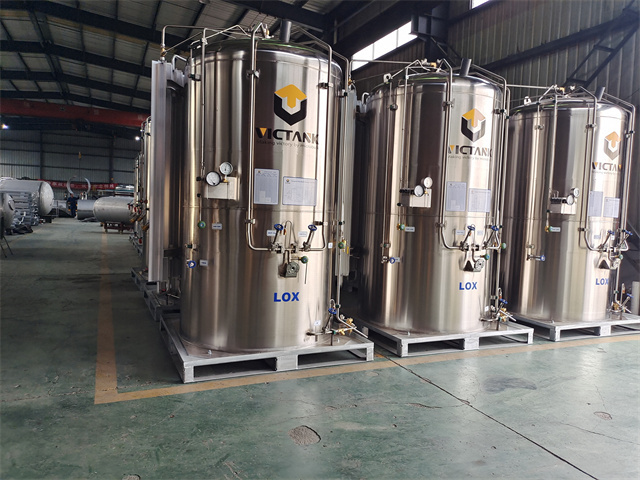

Microbulk Tank MB2000MP
Inquire

I would like to hear from you in details about your previous operation in middle east area. We've been confident that there'll become a promising future and we hope we can have long lasting cooperation with consumers from all over the world.

Description

Microbulk, modern conception of gas supplied on-site

Microbulk is a modern concept where your gas is supplied by filling on-site vs. the traditional method by handling numbers of empty cylinders and dewars. Microbulk enjoys outstanding features mean exceptional performance.

Microbulk is a complete gas supply and management solution that enables users of all sizes to enjoy the cost and efficiency benefits of switching to liquid gas from high pressure gas cylinders. Various tank sizes, pressures and configurations are available to meet your needs.

Microbulk systems are available for oxygen, nitrogen, argon, carbon dioxide, nitrous oxide(N2O), LNG. Various capacity optional 2000L,3000L,5000L;Working pressure 16bar ,25bar,35bar .

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (5)


Technical Datasheet

ASME standard 2000L-16bar

MB2000MP

MAWP

Mpa(psi)

1.6(230)

Max. Pre-set Operating Press

Mpa(psi)

1.0(150)

Gross Volume

L(gal)

2107(557)

Net Volume

L(gal)

2002(529)

NER(Nitrogen)

%/Day

0.6

Tare Weight

kg(lbs)

1170(2579)

Gaseous Volume(Oxygen)

Nmˆ3(SCF)

1598(56437)

Gaseous Volume(Nitrogen)

Nmˆ3(SCF)

1287(45452)

Gaseous Volume(Argon)

Nmˆ3(SCF)

1563(55207)

Gas delivery rate

Nmˆ3/H(SCFH)

75(2649)

Pallet Width "A"

mm(inch)

1500(59.05)

Pallet Length "B"

mm(inch)

1500(59.05)

Tank Diameter "D"

mm(inch)

1308(51.5)

Overall Height "H"

mm(inch)

3060(120.47)

Material:

Inner   vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.

3units 2m3 microbulk tank shipped by one 20OT container. (open top container)

3units 3m3 microbulk tank shipped by one 20OT container. (open top container)

2units 5m3 microbulk tank shipped by one 20OT container. (open top container)

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (6)

Our organization promises all customers with the first-class products and solutions and the most satisfying post-sale service. We warmly welcome our regular and new clients to join us for 5m3 lo2 steel tank oxygen in bahamas - Victank, The product will supply to all over the world, such as: Slovak Republic, Los Angeles, Manchester, Tajikistan, We welcome you to visit our company, factory and our showroom displayed various products that will meet your expectation, meanwhile, it is convenient to visit our website, our sales staff will try their efforts to provide you the best service. If you need more information, please do not hesitate to contact us by E-mail or telephone.
