5m3 ln2 liquid oxygen tank in oman - Victank
Microbulk Tank MC3000HP
Inquire

Our focus on should be to consolidate and enhance the quality and repair of present products, in the meantime constantly establish new products to meet unique customers' requires for Since the manufacturing facility founded, we have now committed on the progress of new products. While using the social and economic pace, we are going to continue to carry forward the spirit of "high high-quality, efficiency, innovation, integrity", and persist with the operating principle of "credit to start with, customer initially, top quality excellent". We'll make a amazing long run in hair output with our companions.

Description

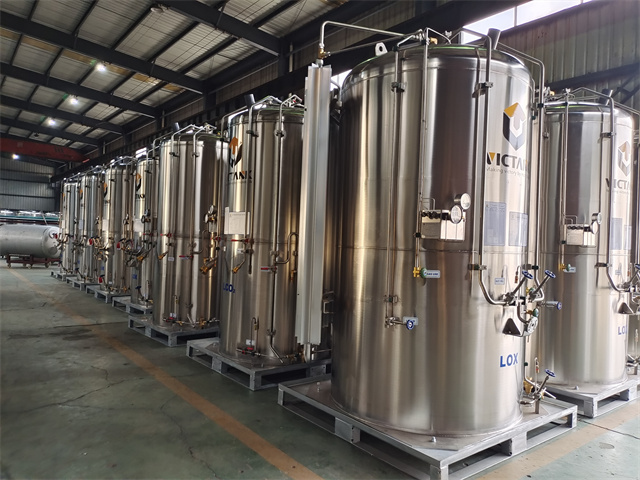

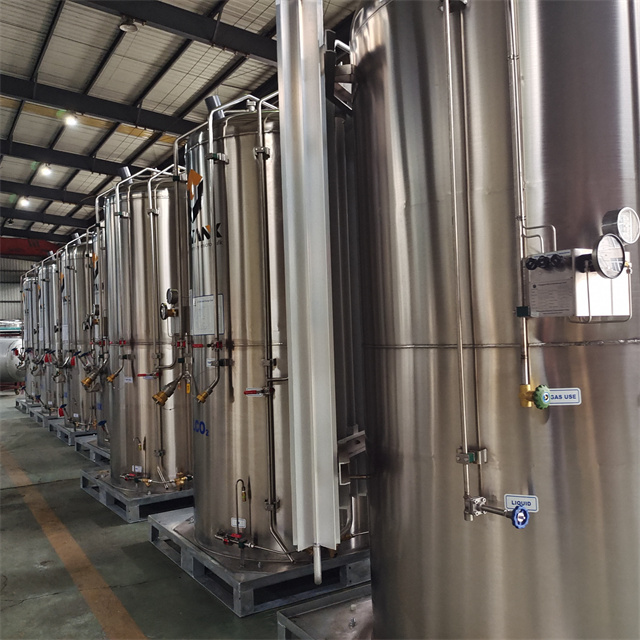

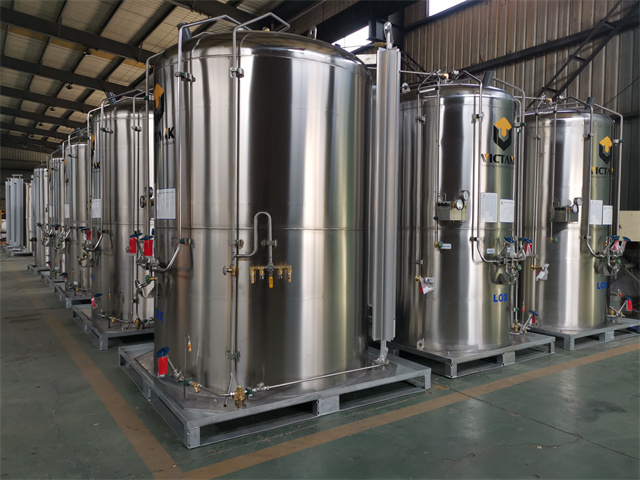

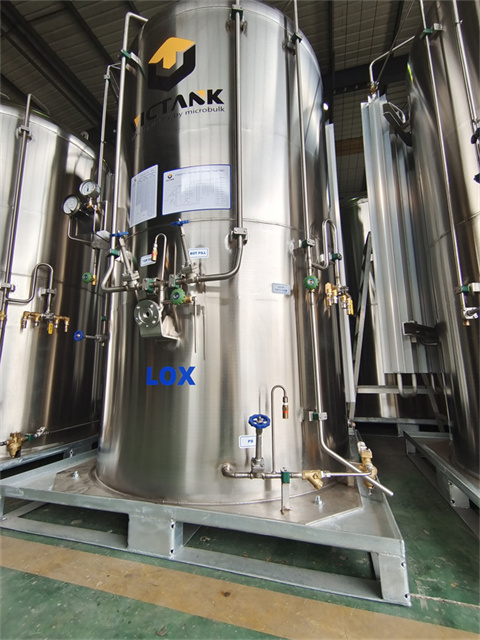

Victank microbulk tanks offer a better solution of end-to-end liquid gas delivery, replacing all your costly gas cylinders. It improves gas transportation, charging and storage management greatly. An ideal solution for medium size customers in industries, medical, cutting, lab and etc.

Designed to replace high pressure gas cylinders, VICTANK eliminates:

  • waste and expense of full for empty gas cylinders
  • cylinder change-overs
  • residual gas losses
  • lost or damaged cylinders
  • cylinder inventory management
  • manual handling injuries

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (4)

Technical Datasheet

ASME standard 3000L-24bar

MC3000HP

MAWP

Mpa(psi)

2.4(350)

Max. Pre-set Operating Press

Mpa(psi)

1.8(260)

Gross Volume

L(gal)

3031(800)

Net Volume

L(gal)

2879(761)

NER(Nitrogen)

%/Day

0.5

Tare Weight

kg(lbs)

2003(4416)

Gaseous Volume(CO2)

Nmˆ3(SCF)

1864(65181)

Gas delivery rate

Nmˆ3/H(SCFH)

30(1059)

Pallet Width "A"

mm(inch)

1700(66.92)

Pallet Length "B"

mm(inch)

1700(66.92)

Tank Diameter "D"

mm(inch)

1508(59.37)

Overall Height "H"

mm(inch)

3160(124.41)

Material:

Inner  vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.

3units 2m3 microbulk tank shipped by one 20OT container. (open top container)

3units 3m3 microbulk tank shipped by one 20OT container. (open top container)

2units 5m3 microbulk tank shipped by one 20OT container. (open top container)

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (2)
