5m3 lin liquid o2 tank in zimbabwe - Victank

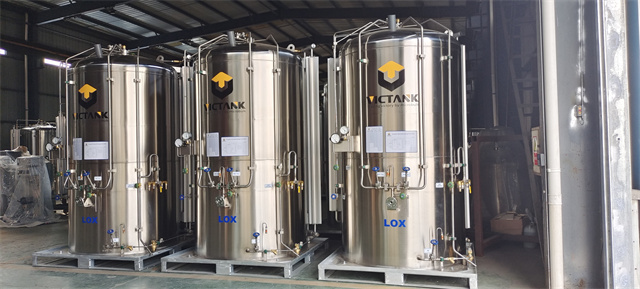

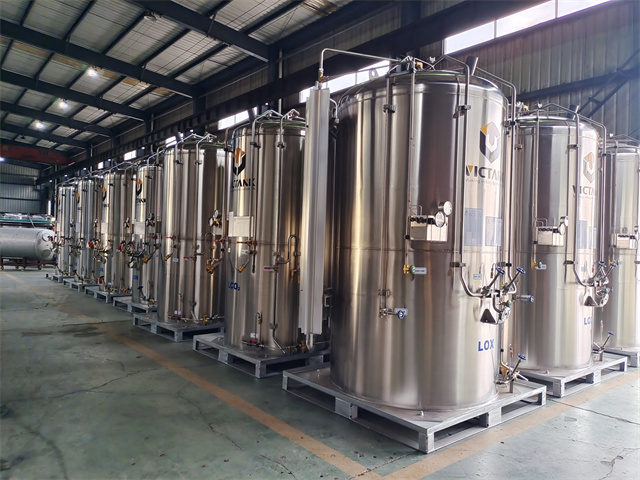

Portable Microbulk Tank for Transportation PCT1000HP
Inquire

Our progress depends about the advanced products ,fantastic talents and continuously strengthened technology forces for Now now we have recognized steady and long organization relationships with customers from North America, Western Europe, Africa, South America, extra than 60 countries and regions.

Description

The microbulk supply platform is the right solution if your supply needs range from 1000m3 per month to 10,000m3 per month. It is the ideal and economic gas transportation for the customers who requires 1000-10000Liters gas, increasing the transportation efficiency, reducing the cost for both the workers and also the lorry tankers.

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, liquid gas tank, medical

Technical Datasheet

ASME standard 1000L-25bar

PCT1000HP

MAWP

Mpa(psi)

2.5(362)

Max. Pre-set Operating Press

Mpa(psi)

2.0(290)

Gross Volume

L(gal)

1040(275)

Net Volume

L(gal)

957(253)

NER(Nitrogen)

%/Day

1.0

Tare Weight

kg(lbs)

1025(2260

Gaseous Volume(Oxygen)

Nmˆ3(SCF)

764(26977)

Gaseous Volume(Nitrogen)

Nmˆ3(SCF)

615(21726)

Gaseous Volume(Argon)

Nmˆ3(SCF)

747(26389)

Pallet Width "L"

mm(inch)

2500(98.43)

Pallet Length "W"

mm(inch)

1400(55.12)

Tank Diameter "D"

mm(inch)

1108(43.62)

Overall Height "H"

mm(inch)

1500(59.06)

Material:

Inner vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping


2units shipped by 1x20GP container.

4units shipped by 1x40GP container.



To be the stage of realizing dreams of our employees! To build a happier, far more united and far more specialist team! To reach a mutual profit of our customers, suppliers, the society and ourselves for 5m3 lin liquid o2 tank in zimbabwe - Victank, The product will supply to all over the world, such as: venezuela, Guinea, Seychelles, Brasilia, Our focus on product quality, innovation, technology and customer service has made us one of undisputed leaders worldwide in the field. Bearing the concept of "Quality First, Customer Paramount, Sincerity and Innovation" in our mind, We have achieved great progress in the past years. Clients are welcomed to buy our standard products, or send us requests. You will be impressed by our quality and price. Please contact us now!
