5m3 lar cryogenic oxygen tank in malta - Victank

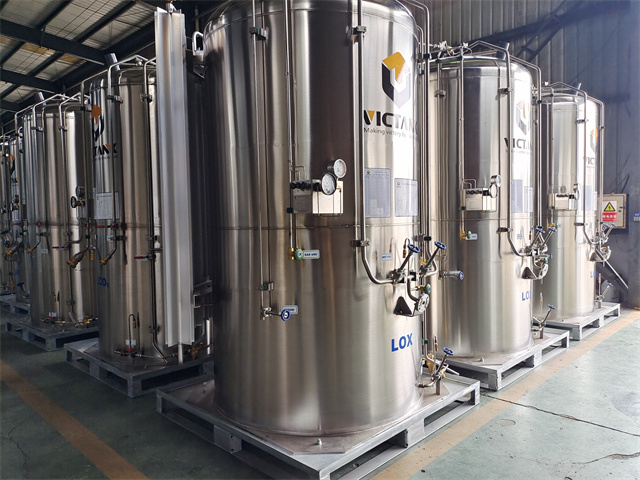

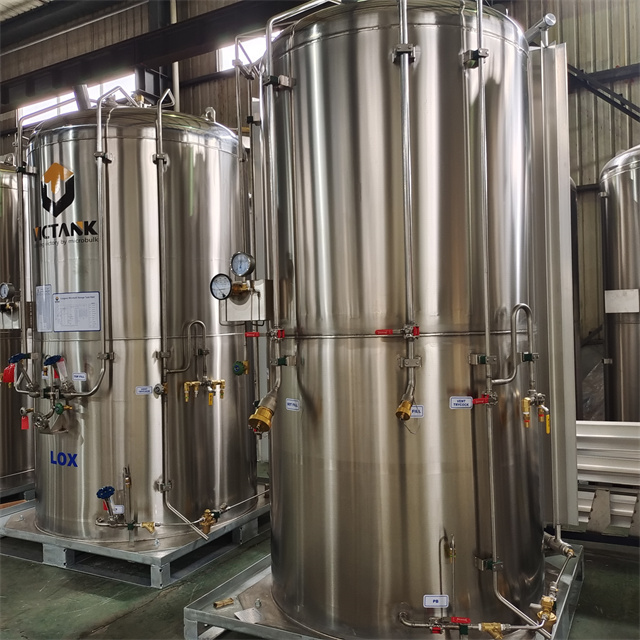

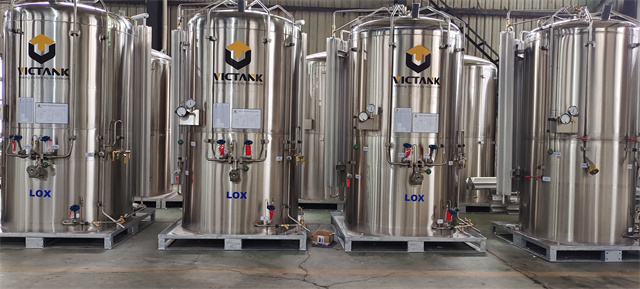

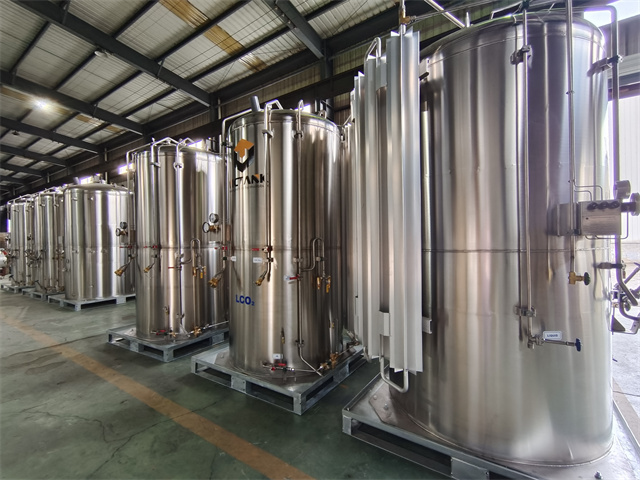

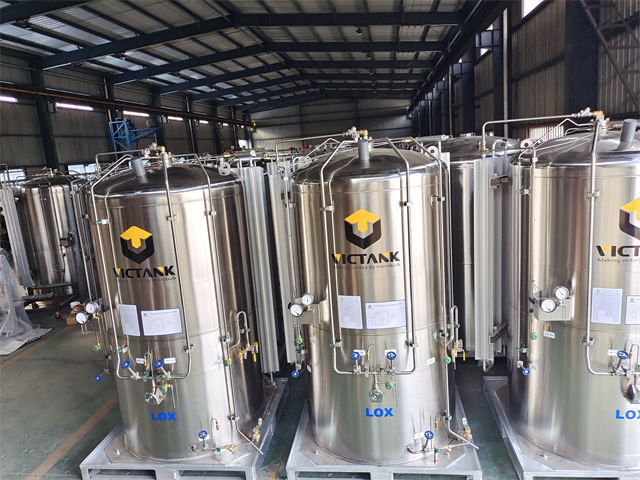

Microbulk Tank MN3000MP
Inquire

Our mission will be to become an innovative supplier of high-tech digital and communication devices by furnishing benefit added structure, world-class manufacturing, and service capabilities for We are keeping durable small business relationships with additional than 200 wholesalers in the USA, the UK, Germany and Canada. For anyone who is intrigued in any of our products, make sure you experience free to speak to us.

Description

Microbulk is a modern concept where your gas is supplied by filling on-site vs. the traditional method by handling numbers of empty cylinders and dewars. Microbulk enjoys outstanding features mean exceptional performance.

Victank microbulk LNG satellite station is a smart and modular design for small LNG applications. The whole LNG station is built on skid, with LNG storage, regasification, pressure regulation, measurement, odorization and etc, which is very convenient for installation and operation.

Typical models are 1M3, 2M3, 3M3, 5M3, 7M3 and more.

Customization is available upon your specific requirements.

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (13)

Technical Datasheet

ASME standard 3000L-16bar

MN3000MP

MAWP

Mpa(psi)

1.6(230)

Max. Pre-set Operating Press

Mpa(psi)

0.8(116)

Gross Volume

L(gal)

3031(800)

Net Volume

L(gal)

2727(720)

NER(Nitrogen)

%/Day

0.5

Tare Weight

kg(lbs)

1750(3858)

Gaseous Volume(NG)

Nmˆ3(SCF)

3954(139634)

Gas delivery rate

Nmˆ3/H(SCFH)

75(2649)

Pallet Width "A"

mm(inch)

1700(66.92)

Pallet Length "B"

mm(inch)

1700(66.92)

Tank Diameter "D"

mm(inch)

1508(59.37)

Overall Height "H"

mm(inch)

3160(124.41)

Material:

Inner vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.

3units 2m3 microbulk tank shipped by one 20OT container. (open top container)

3units 3m3 microbulk tank shipped by one 20OT container. (open top container)

2units 5m3 microbulk tank shipped by one 20OT container. (open top container)

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (13)


With our abundant experience and considerate products and services, we have been recognized to be a reputable supplier for a lot of global consumers for 5m3 lar cryogenic oxygen tank in malta - Victank, The product will supply to all over the world, such as: Jakarta, Cologne, Senegal, Yemen, We are your reliable partner in the international markets of our products. We focus on providing service for our clients as a key element in strengthening our long-term relationships. The continual availability of high grade products in combination with our excellent pre- and after-sales service ensures strong competitiveness in an increasingly globalized market. We are willing to cooperate with business friends from at home and abroad, to create a great future. Welcome to Visit our factory. Looking forward to have win-win cooperation with you.
