5000l lox microbulk nitrogen in uganda - Victank

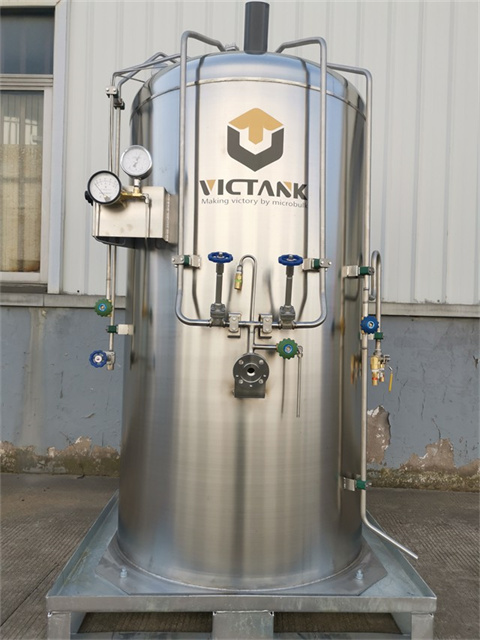

Microbulk Tank MB2000VHP
Inquire

Our customers are always satisfied with our products, which speaks volumes about the quality of our product. For even more inquires remember to do not hesitate to get in touch with us. Thank you - Your support continuously inspires us.

Description

Microbulk tank is an innovative product which can provide an more economical and convenient delivery and design specially for the industry field, lab and medicine area. Compared with other cylinder, Microbulk tank is more reliable, safer, efficient and economical.

Microbulk systems are available for oxygen, nitrogen, argon, carbon dioxide, nitrous oxide(N2O), LNG and in high pressure, high flow applications including laser assist gases.

Various capacity optional 1000L, 2000L,3000L,5000L;Working pressure 16bar ,25bar,35bar.

35bar is popular for lasering cutting.

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (6)

Technical Datasheet

ASME standard 2000L-35bar

MB2000VHP

MAWP

Mpa(psi)

3.5(500)

Max. Pre-set Operating Press

Mpa(psi)

3.1(450)

Gross Volume

L(gal)

2107(557)

Net Volume

L(gal)

1938(512)

NER(Nitrogen)

%/Day

0.6

Tare Weight

kg(lbs)

1490(3285)

Gaseous Volume(Oxygen)

Nmˆ3(SCF)

1548(54655)

Gaseous Volume(Nitrogen)

Nmˆ3(SCF)

1246(44017)

Gaseous Volume(Argon)

Nmˆ3(SCF)

1514(53464)

Gas delivery rate

Nmˆ3/H(SCFH)

75(2649)

Pallet Width "A"

mm(inch)

1500(59.05)

Pallet Length "B"

mm(inch)

1500(59.05)

Tank Diameter "D"

mm(inch)

1308(51.5)

Overall Height "H"

mm(inch)

3060(120.47)

Material:

Inner vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.

3units 2m3 microbulk tank shipped by one 20OT container. (open top container)

3units 3m3 microbulk tank shipped by one 20OT container. (open top container)

2units 5m3 microbulk tank shipped by one 20OT container. (open top container)

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (7)

We have been also concentrating on enhancing the things management and QC method so that we could preserve terrific edge inside the fiercely-competitive enterprise for 5000l lox microbulk nitrogen in uganda - Victank, The product will supply to all over the world, such as: Slovak Republic, Oslo, San Francisco, Curacao, So that you can utilize the resource from the expanding info in international trade, we welcome shoppers from everywhere on-line and offline. In spite of the good quality solutions we provide, effective and satisfying consultation service is supplied by our professional after-sale service team. Product lists and detailed parameters and any other info weil be sent to you timely for your inquiries. So you should make contact with us by sending us emails or call us if you have any questions about our corporation. ou may also get our address info from our web page and come to our company to get a field survey of our merchandise. We've been confident that we have been going to share mutual achievement and create strong co-operation relations with our companions in this marketplace. We're searching forward for your inquiries.
