With a positive and progressive attitude to customer's interest, our enterprise continually improves our products excellent to meet the wants of customers and further focuses on safety, reliability, environmental requirements, and innovation of Through more than 8 years of business, we have accumulated rich experience and advanced technologies in the production of our products.

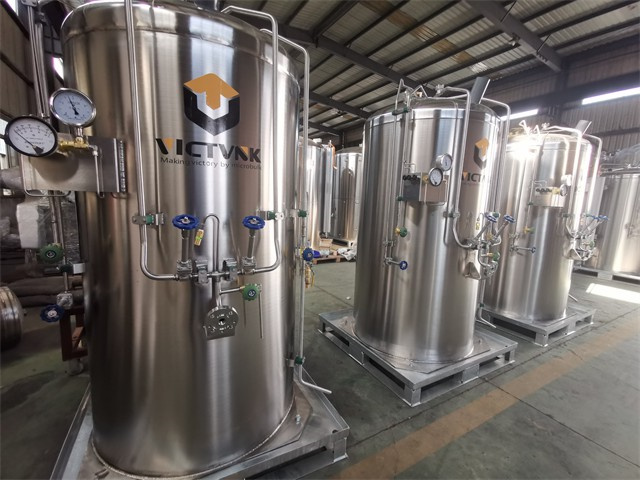

Microbulk enable small and medium volume users to enjoy the benefits of on-site gas delivery. MicroBulk Storage Systems provide reliable, efficient and economical solutions for liquid nitrogen, oxygen, argon, CO2, N2O, and LNG.
Designed to replace high pressure gas cylinders, VICTANK eliminates:
• waste and expense of full for empty gas cylinders
• cylinder change-overs
• residual gas losses
• lost or damaged cylinders
• cylinder inventory management
• manual handling injuries
Horizontal microbulk tank is suitable for general container loading and also for where the installation space limited by the height.
ASME standard 5000L-35bar | MBH5000VHP | |
MAWP | Mpa(psi) | 3.5(500) |
Max. Pre-set Operating Press | Mpa(psi) | 3.1(450) |
Gross Volume | L(gal) | 5031(1329) |
Net Volume | L(gal) | 4629(1223) |
NER(Nitrogen) | %/Day | 0.6 |
Gaseous Volume(Oxygen) | Nmˆ3(SCF) | 3695(130502) |
Gaseous Volume(Nitrogen) | Nmˆ3(SCF) | 2976(105101) |
Gaseous Volume(Argon) | Nmˆ3(SCF) | 3615(127658) |
Gas delivery rate | Nmˆ3/H(SCFH) | 100(3532) |
Pallet Width "A" | mm(inch) | 3150(124.01) |
Pallet Length "B" | mm(inch) | 1400(55.12) |
Tank Diameter "D" | mm(inch) | 1910(75.2) |
Overall Height "H" | mm(inch) | 2150(84.64) |
Width w/piping "w" | mm(inch) | 2230(87.8) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
1units shipped by 1x20GP container.
3units shipped by 1x40GP container.
We usually continually offer you the most conscientious consumer services, along with the widest variety of designs and styles with finest materials. These initiatives include the availability of customized designs with speed and dispatch for 3m3 lng microbulk tank sizes in malta - Victank, The product will supply to all over the world, such as: Wellington, Afghanistan, Berlin, Mauritania, Qualified R&D engineer might be there for your consultation service and we will try our best to meet your requirements. So you should feel free to contact us for inquiries. You'll be able to send us emails or call us for small business. Also you are able to come to our business by yourself to get further knowing of us. And we are going to surely present you with the best quotation and after-sale service. We're ready to build stable and friendly relations with our merchants. To achieve mutual success, we'll make our best efforts to build a solid co-operation and transparent communication work with our companions. Above all, we're here to welcome your inquiries for any of our merchandise and service.
