35mpa n2 liquid o2 tank in cyprus - Victank

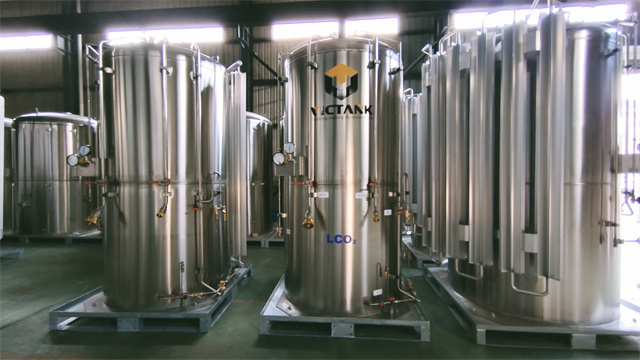

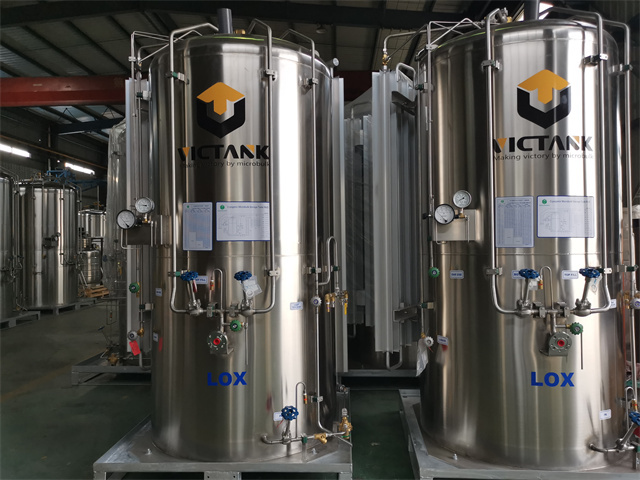

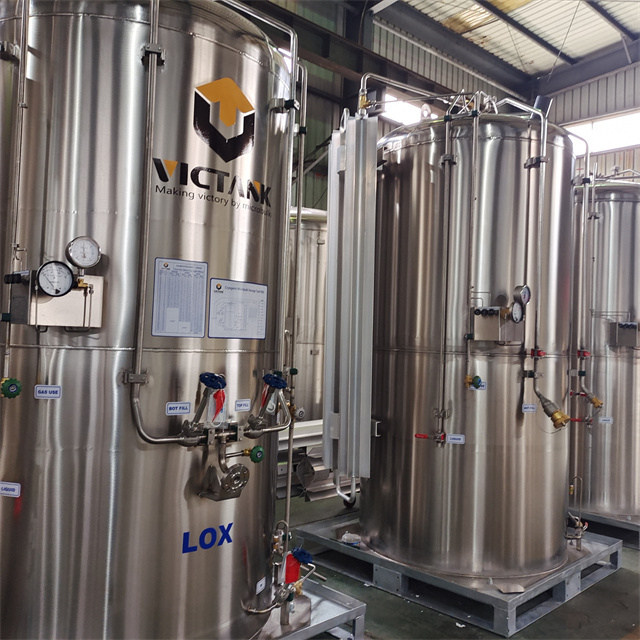

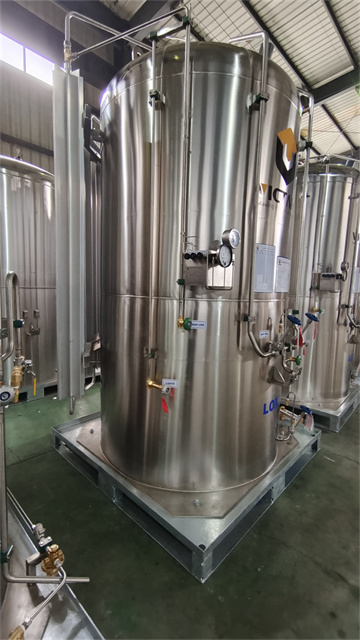

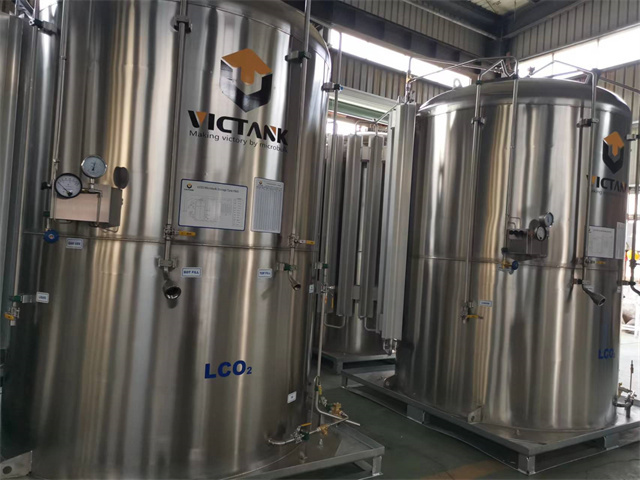

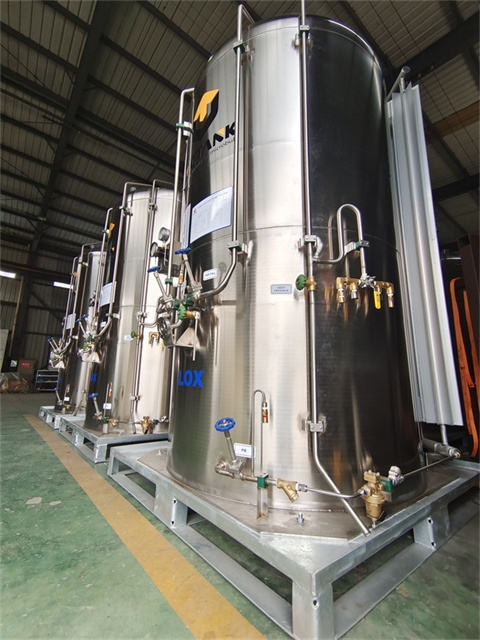

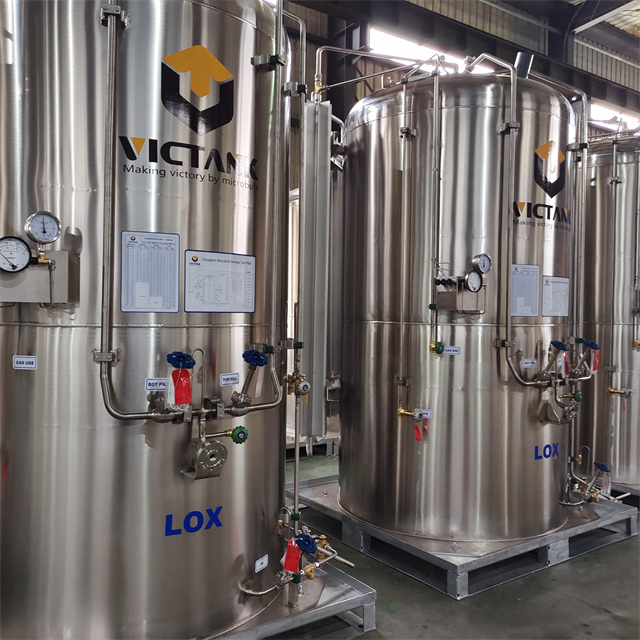

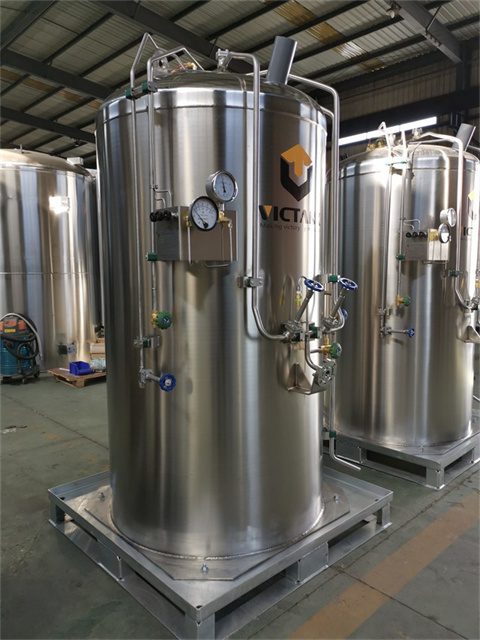

Microbulk Tank MN5000MP
Inquire

Our enterprise insists all along the standard policy of "product high-quality is base of business survival; client satisfaction could be the staring point and ending of an business; persistent improvement is eternal pursuit of staff" as well as consistent purpose of "reputation first, client first" for We are willing to give you the lowest price in the market, best quality and very nice sales service.Welcome to do bussines with us,let's be double win.

Description

Microbulk is a modern concept where your gas is supplied by filling on-site vs. the traditional method by handling numbers of empty cylinders and dewars. Microbulk enjoys outstanding features mean exceptional performance.

Victank microbulk LNG satellite station is a smart and modular design for small LNG applications. The whole LNG station is built on skid, with LNG storage, regasification, pressure regulation, measurement, odorization and etc, which is very convenient for installation and operation.

Typical models are 1M3, 2M3, 3M3, 5M3, 7M3 and more.

Customization is available upon your specific requirements.

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (14)

Technical Datasheet

ASME standard 5000L-16bar

MN5000MP

MAWP

Mpa(psi)

1.6(230)

Max. Pre-set Operating Press

Mpa(psi)

0.8(116)

Gross Volume

L(gal)

5168(1365)

Net Volume

L(gal)

4651(1228)

NER(Nitrogen)

%/Day

0.4

Tare Weight

kg(lbs)

2613(5761)

Gaseous Volume(NG)

Nmˆ3(SCF)

6743(238127)

Gas delivery rate

Nmˆ3/H(SCFH)

100(3532)

Pallet Width "A"

mm(inch)

2100(82.67)

Pallet Length "B"

mm(inch)

2100(82.67)

Tank Diameter "D"

mm(inch)

1910(75.2)

Overall Height "H"

mm(inch)

3150(124.02)

Material:

Inner vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.
3units 2m3 microbulk tank shipped by one 20OT container. (open top container)
3units 3m3 microbulk tank shipped by one 20OT container. (open top container)
2units 5m3 microbulk tank shipped by one 20OT container. (open top container)

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (14)
