35bar lo2 cryogenic tank in cambodia - Victank

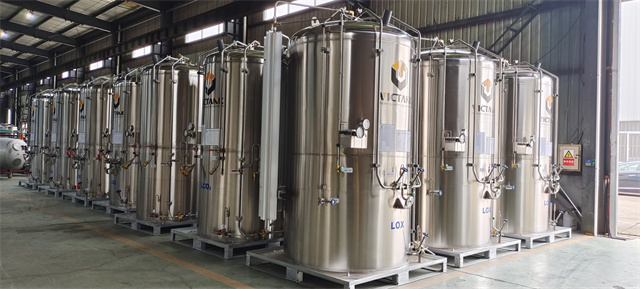

Microbulk Tank MC5000HP
Inquire

We know that we only thrive if we can guarantee our combined price tag competiveness and top quality advantageous at the same time for We welcome new and previous clients from all walks of lifestyle to get in touch with us for long term business relationships and mutual accomplishment!

Description

Microbulk is a modern concept where your gas is supplied by filling on-site vs. the traditional method by handling numbers of empty cylinders and dewars. Microbulk enjoys outstanding features mean exceptional performance.



Victank microbulks benefits:

It is an on-site filling solution for gas cylinder users.

The charge loss is low or even zero.

Longer liquid gas hold times.

Extraordinary thermal quality assures very little gas loss.

The boost speed is fast and the gas flow is large.

Quick recharge to save time and reduce costs.

Multiple pressures, different volumes, more choices.

Brand valves HEROSE, REGO, accessories, high reliability.

Small footprint, convenient transportation, simple installation.

Less operation and maintenance needed.

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (11)

Technical Datasheet

ASME standard 5000L-24bar

MC5000HP

MAWP

Mpa(psi)

2.4(350)

Max. Pre-set Operating Press

Mpa(psi)

1.8(260)

Gross Volume

L(gal)

5168(1365)

Net Volume

L(gal)

4910(1297)

NER(Nitrogen)

%/Day

0.4

Tare Weight

kg(lbs)

2855(6294)

Gaseous Volume(CO2)

Nmˆ3(SCF)

3147(111137)

Gas delivery rate

Nmˆ3/H(SCFH)

40(1413)

Pallet Width "A"

mm(inch)

2100(82.67)

Pallet Length "B"

mm(inch)

2100(82.67)

Tank Diameter "D"

mm(inch)

1910(75.2)

Overall Height "H"

mm(inch)

3150(124.02)

Material:

Inner  vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.

3units 2m3 microbulk tank shipped by one 20OT container. (open top container)

3units 3m3 microbulk tank shipped by one 20OT container. (open top container)

2units 5m3 microbulk tank shipped by one 20OT container. (open top container)

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (4)

Often customer-oriented, and it's our ultimate target to become not only probably the most reputable, trustable and honest provider, but also the partner for our customers for 35bar lo2 cryogenic tank in cambodia - Victank, The product will supply to all over the world, such as: Brisbane, Vancouver, Czech, Jersey, Ought to any of these products be of curiosity to you, remember to allow us to know. We are going to be satisfied to give you a quotation on receipt of one's in depth specs. We've our private experienced R&D enginners to meet any of one's requriements, We appear forward to receiving your enquires soon'and hope to have the opportunity to work together with you in the future. Welcome to check out our company.
