We normally think and practice corresponding towards the change of circumstance, and grow up. We aim at the achievement of a richer mind and body plus the living for should you have any query or wish to place an initial order please do not hesitate to contact us.

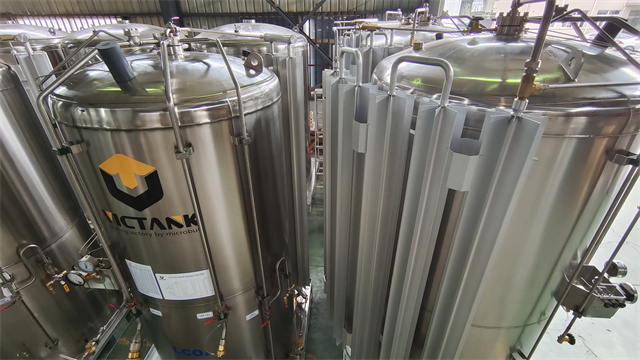

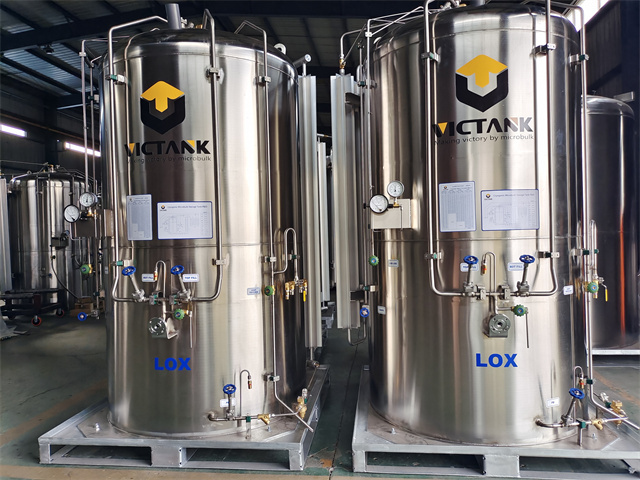

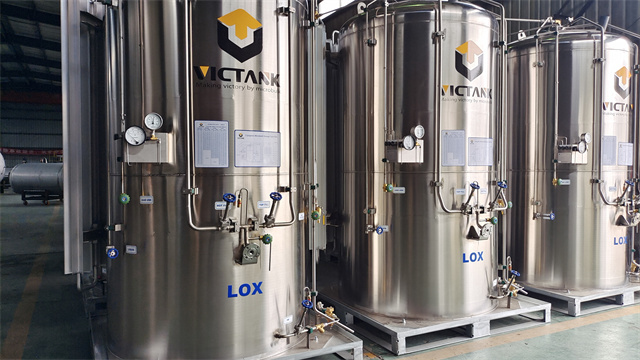

Microbulk enable small and medium volume users to enjoy the benefits of on-site gas delivery. Microbulk Transportation and Storage Systems provide reliable, efficient and economical solutions for liquid nitrogen, oxygen, argon, CO2, N2O, and LNG.
Designed to replace high pressure gas cylinders, VICTANK eliminates:
• waste and expense of full for empty gas cylinders
• cylinder change-overs
• residual gas losses
• lost or damaged cylinders
• cylinder inventory management
• manual handling injuries
ASME standard 2000L-25bar | PCT2000HP | |
MAWP | Mpa(psi) | 2.5(362) |
Max. Pre-set Operating Press | Mpa(psi) | 2.0(290) |
Gross Volume | L(gal) | 3031(801) |
Net Volume | L(gal) | 2789(737) |
NER(Nitrogen) | %/Day | 0.8 |
Tare Weight | kg(lbs) | 1515(3340) |
Gaseous Volume(Oxygen) | Nmˆ3(SCF) | 1548(54655) |
Gaseous Volume(Nitrogen) | Nmˆ3(SCF) | 1246(44017) |
Gaseous Volume(Argon) | Nmˆ3(SCF) | 1514(53464) |
Gas delivery rate | Nmˆ3/H(SCFH) | |
Pallet Width "L" | mm(inch) | 3300(129.92) |
Pallet Length "W" | mm(inch) | 1600(62.99) |
Tank Diameter "D" | mm(inch) | 1308(51.5) |
Overall Height "H" | mm(inch) | 1700(66.93) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
1unit shipped by 1x20GP container.
3units shipped by 1x40GP container.
The relentless pursuit of perfection． 35bar ln2 argon tank in malta - Victank, The product will supply to all over the world, such as: British, Tanzania, Adelaide, Auckland, Abiding by our motto of "Hold well the quality and services, Customers Satisfaction", So we provide our clients with high quality products and excellent service. Please feel free to contact us for further information.
