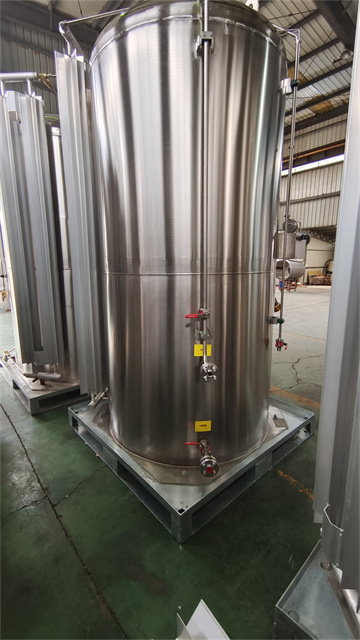

//a0.leadongcdn.cn/cloud/moBpoKriRlkSoiqqjijri/microbulk-tank-oxygen-tank-liquid-oxygen-liquid-nitrogen-liquid-argon-LCO2.jpg
35bar lar asme tank in mongolia - Victank
Microbulk Tank Horizontal MBH3000MP
Inquire

We rely upon strategic thinking, constant modernisation in all segments, technological advances and of course upon our employees that directly participate in our success for We hope we are able to have a pleasant partnership with businessman from all over the environment.

Description

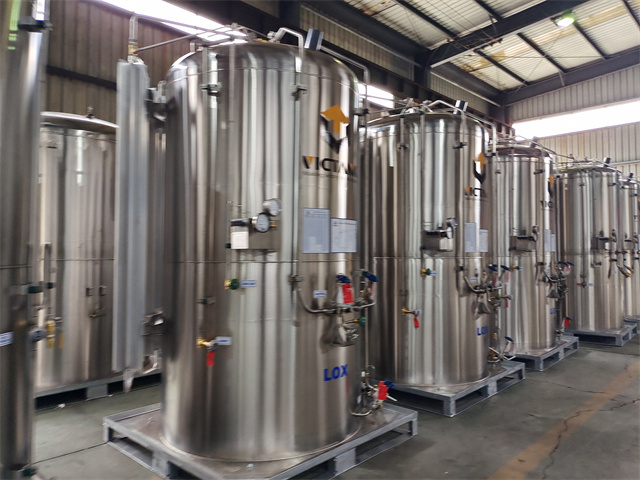

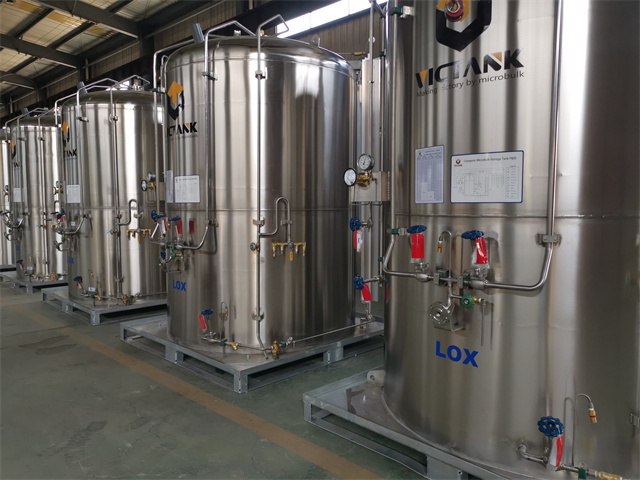

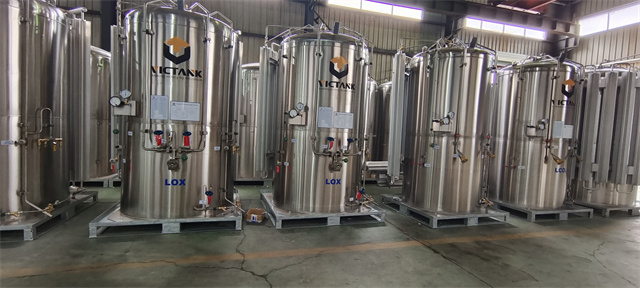

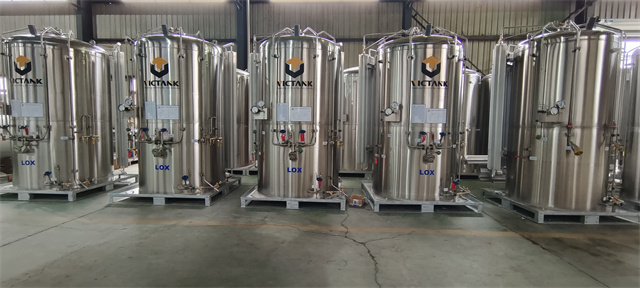

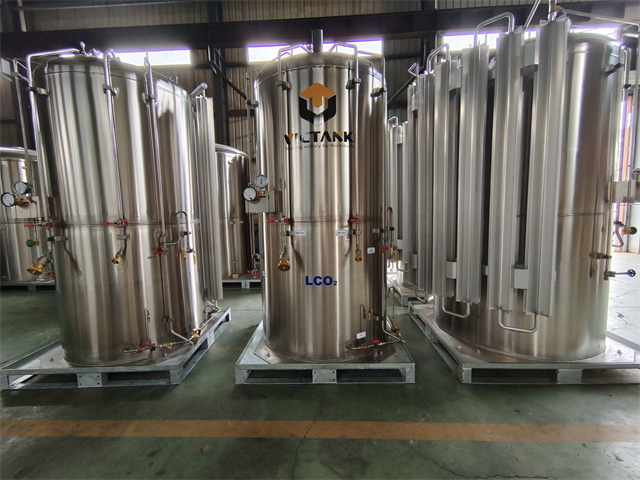

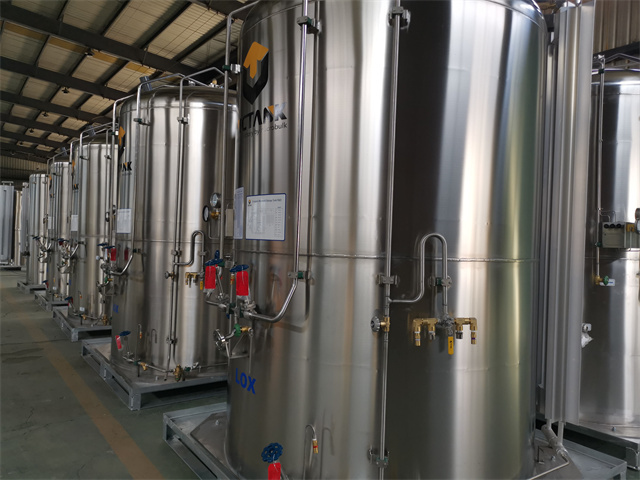

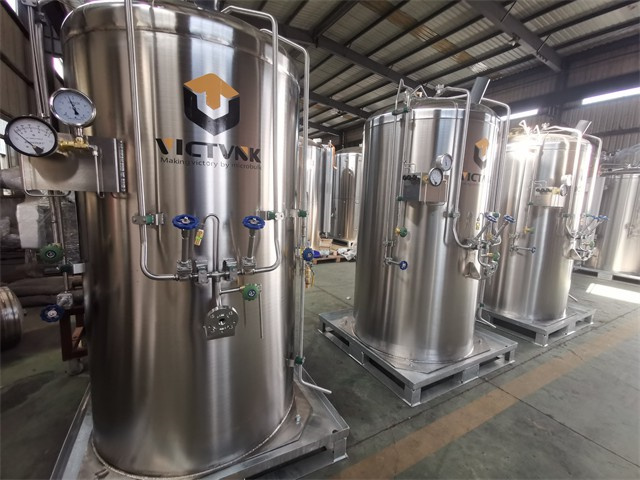

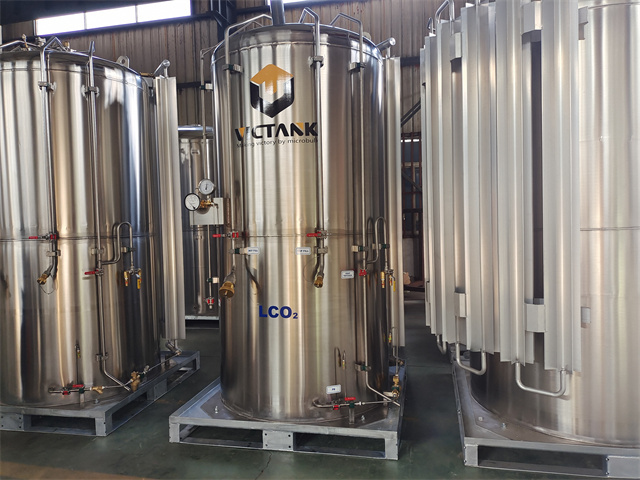

Microbulk tanks offer a better solution of end-to-end liquid gas delivery, replacing all your costly gas cylinders. It improves gas transportation, charging and storage management greatly. An ideal solution for medium size customers in industries, medical, cutting, lab and etc.

More reliable, safe, efficient and economical, compared with high pressure gas cylinders and dewar flasks.

Superior performance: bigger capacity, longer storage period, higher flow rate, fast pressure build-up. It is the best and only solution for your laser cutting of thick metal!

Horizontal microbulk tank is suitable for general container loading and also for where the installation space limited by the height.

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, liquid gas tank, medical

Technical Datasheet

ASME standard 3000L-16bar

MBH3000MP

MAWP

Mpa(psi)

1.6(230)

Max.  Pre-set Operating Press

Mpa(psi)

1.0(150)

Gross Volume

L(gal)

3031(801)

Net Volume

L(gal)

2879(761)

NER(Nitrogen)

%/Day

0.7

Gaseous Volume(Oxygen)

Nmˆ3(SCF)

2299(81187)

Gaseous Volume(Nitrogen)

Nmˆ3(SCF)

1851(65385)

Gaseous Volume(Argon)

Nmˆ3(SCF)

2249(79417)

Gas delivery rate

Nmˆ3/H(SCFH)

75(2649)

Pallet Width "A"

mm(inch)

3200(125.98)

Pallet Length "B"

mm(inch)

1100(43.3)

Tank Diameter "D"

mm(inch)

1508(59.37)

Overall Height "H"

mm(inch)

1880(74.01)

Width w/piping "w"

mm(inch)

1826(71.89)

Material:

Inner vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping


1units shipped by 1x20GP container.

3units shipped by 1x40GP container.


The products are of high quality, with a variety of options to choose from. 35bar lar asme tank in mongolia - Victank, The product will supply to all over the world, such as: Montpellier, Birmingham, Namibia, Madagascar, Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
