35bar ar horizontal gas tank in yemen - Victank

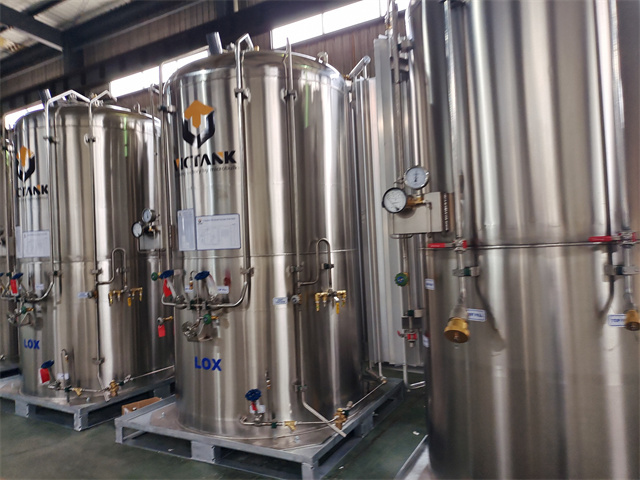

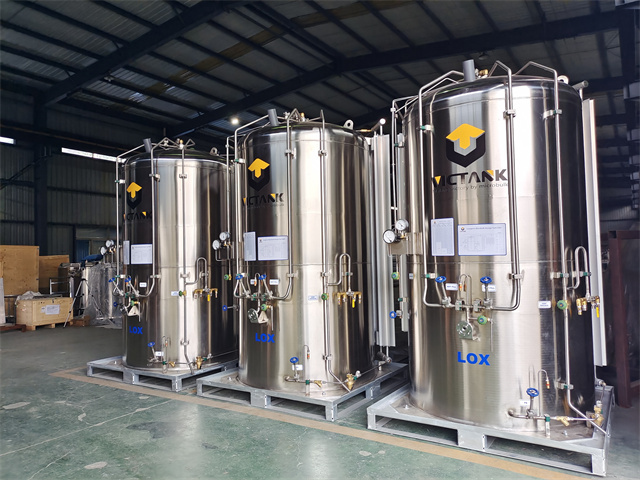

Microbulk Tank MB3000MP
Inquire

"Based on domestic market and expand overseas business" is our improvement strategy for We have been wanting ahead to setting up cooperative associations along with you. Make sure you contact us for more data.

Description

Victank microbulk tanks offer a better solution of end-to-end liquid gas delivery, An ideal solution for medium size customers in industries, medical, cutting, lab and etc.

Various capacity optional 1000L 2000L,3000L,5000L; Working pressure 16bar, 24bar,35bar.

Innovation liquid nitrogen tank or liquid nitrogen container—Microbulk, helps you keep continued and steady working condition for laser cutting! Microbulk tank is popular been used as industrial liquid gas tank.

How we make the Microbulk nitrogen storage tank to be the best solution for laser cutting? This liquid nitrogen tank features: Built on skid which makes it easier for installation; Special designed PBU allows the tank pressure increase to 30bar very quickly. The liquid nitrogen container suitable for whole laser cutting demands; Fast pressure building-up; Large Nitrogen output capacity to meet the high power laser machine requirement.

Microbulk nitrogen tanks for sale, customized liquid gas tank is available, and you could also equip a spare Microbulk to keep uninterrupted gas delivery even when in filling.

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (7)


Technical Datasheet

ASME standard 3000L-16bar

MB3000MP

MAWP

Mpa(psi)

1.6(230)

Max. Pre-set Operating Press

Mpa(psi)

1.0(150)

Gross Volume

L(gal)

3031(801)

Net Volume

L(gal)

2879(761)

NER(Nitrogen)

%/Day

0.5

Tare Weight

kg(lbs)

1750(3858)

Gaseous Volume(Oxygen)

Nmˆ3(SCF)

2299(81187)

Gaseous Volume(Nitrogen)

Nmˆ3(SCF)

1851(65385)

Gaseous Volume(Argon)

Nmˆ3(SCF)

2249(79417)

Gas delivery rate

Nmˆ3/H(SCFH)

75(2649)

Pallet Width "A"

mm(inch)

1700(66.92)

Pallet Length "B"

mm(inch)

1700(66.92)

Tank Diameter "D"

mm(inch)

1508(59.37)

Overall Height "H"

mm(inch)

3160(124.41)

Material:

Inner vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.

3units 2m3 microbulk tank shipped by one 20OT container. (open top container)

3units 3m3 microbulk tank shipped by one 20OT container. (open top container)

2units 5m3 microbulk tank shipped by one 20OT container. (open top container)

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (8)

We are commitment to offer you the aggressive price tag ,exceptional products and solutions high-quality, as well as fast delivery for 35bar ar horizontal gas tank in yemen - Victank, The product will supply to all over the world, such as: Greek, Brunei, Mauritania, Anguilla, We welcome customers from all over the world come to discuss business. We supply high quality products, reasonable prices and good services. We hope to sincerely build business relationships with customers from at home and abroad, jointly striving for a resplendent tomorrow.
