25bar o2 horizontal gas tank in honduras - Victank

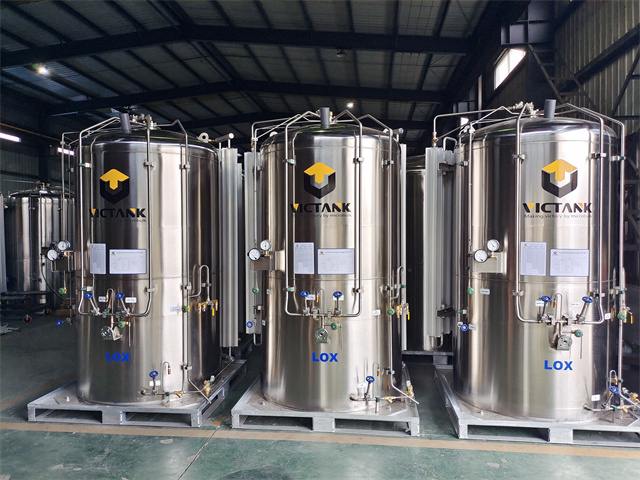

Portable Microbulk Tank for Transportation PCT2000MP
Inquire

"Based on domestic market and expand overseas business" is our improvement strategy for Making the Products and solutions of Superior Quality may be the eternal target of our company. We make unremitting attempts to comprehend the objective of "We Will Often Preserve in Pace along with the Time".

Description

Microbulk is a Complete gas supply and management solution that enables users of all sizes to enjoy the cost and efficiency benefits of switching to liquid gas from high pressure gas cylinders.

Economic gas transportation for the customers who requires 1000-10000Liters gas, increasing the transportation efficiency, reducing the cost for both the workers and also the lorry tankers.


microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, liquid gas tank, medical

Technical Datasheet

ASME standard 2000L-16bar

PCT2000MP

MAWP

Mpa(psi)

1.6(230)

Max. Pre-set Operating Press

Mpa(psi)

1.0(150)

Gross Volume

L(gal)

2107(557)

Net Volume

L(gal)

1938(512)

NER(Nitrogen)

%/Day

0.8

Tare Weight

kg(lbs)

1350(2976)

Gaseous Volume(Oxygen)

Nmˆ3(SCF)

1548(54655)

Gaseous Volume(Nitrogen)

Nmˆ3(SCF)

1246(44017)

Gaseous Volume(Argon)

Nmˆ3(SCF)

1514(53464)

Pallet Width "L"

mm(inch)

3300(129.92)

Pallet Length "W"

mm(inch)

1600(62.99)

Tank Diameter "D"

mm(inch)

1308(51.5)

Overall Height "H"

mm(inch)

1700(66.93)

Material:

Inner vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping


1unit shipped by 1x20GP container.

3units shipped by 1x40GP container.


Every single member from our higher effectiveness product sales staff values customers' requires and organization communication for 25bar o2 horizontal gas tank in honduras - Victank, The product will supply to all over the world, such as: Juventus, Rwanda, Leicester, Sydney, Due to good quality and reasonable prices, our items have been exported to more than 10 countries and regions. We are looking forward to cooperating with all customers from at home and abroad. Moreover, customer satisfaction is our eternal pursuit.
