25bar n2 asme tank in cambodia - Victank

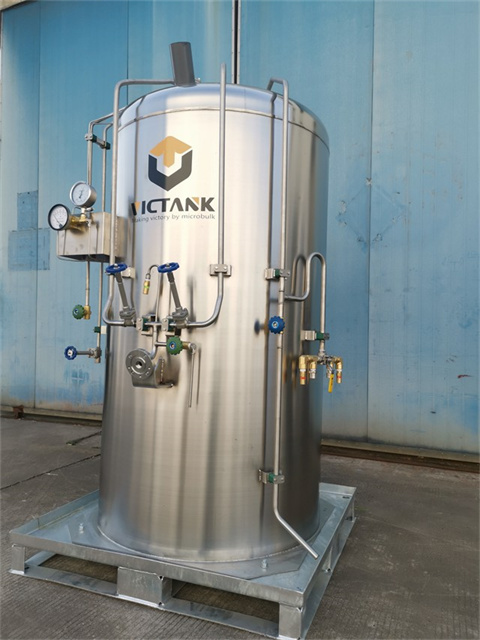

Microbulk Tank MC5000HP
Inquire

Our enhancement depends around the sophisticated devices ,exceptional talents and repeatedly strengthened technology forces for We glance forward to receiving your enquires shortly and hope to have the opportunity to function along with you inside the future. Welcome to acquire a glimpse at our organization.

Description

Microbulk is a modern concept where your gas is supplied by filling on-site vs. the traditional method by handling numbers of empty cylinders and dewars. Microbulk enjoys outstanding features mean exceptional performance.



Victank microbulks benefits:

It is an on-site filling solution for gas cylinder users.

The charge loss is low or even zero.

Longer liquid gas hold times.

Extraordinary thermal quality assures very little gas loss.

The boost speed is fast and the gas flow is large.

Quick recharge to save time and reduce costs.

Multiple pressures, different volumes, more choices.

Brand valves HEROSE, REGO, accessories, high reliability.

Small footprint, convenient transportation, simple installation.

Less operation and maintenance needed.

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (11)

Technical Datasheet

ASME standard 5000L-24bar

MC5000HP

MAWP

Mpa(psi)

2.4(350)

Max. Pre-set Operating Press

Mpa(psi)

1.8(260)

Gross Volume

L(gal)

5168(1365)

Net Volume

L(gal)

4910(1297)

NER(Nitrogen)

%/Day

0.4

Tare Weight

kg(lbs)

2855(6294)

Gaseous Volume(CO2)

Nmˆ3(SCF)

3147(111137)

Gas delivery rate

Nmˆ3/H(SCFH)

40(1413)

Pallet Width "A"

mm(inch)

2100(82.67)

Pallet Length "B"

mm(inch)

2100(82.67)

Tank Diameter "D"

mm(inch)

1910(75.2)

Overall Height "H"

mm(inch)

3150(124.02)

Material:

Inner  vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.

3units 2m3 microbulk tank shipped by one 20OT container. (open top container)

3units 3m3 microbulk tank shipped by one 20OT container. (open top container)

2units 5m3 microbulk tank shipped by one 20OT container. (open top container)

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (4)

To create much more price for clients is our company philosophy; purchaser growing is our working chase for 25bar n2 asme tank in cambodia - Victank, The product will supply to all over the world, such as: Rotterdam, Guinea, Curacao, Irish, We adhere to the honest, efficient, practical win-win running mission and people-oriented business philosophy. Excellent quality, reasonable price and customer satisfaction are always pursued! If you are interested in our products, just try to contact us for more details!
