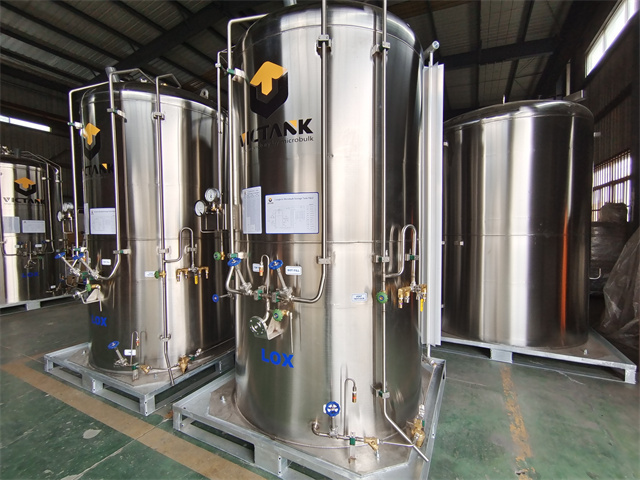

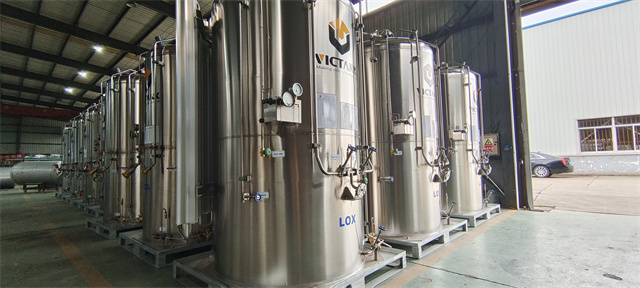

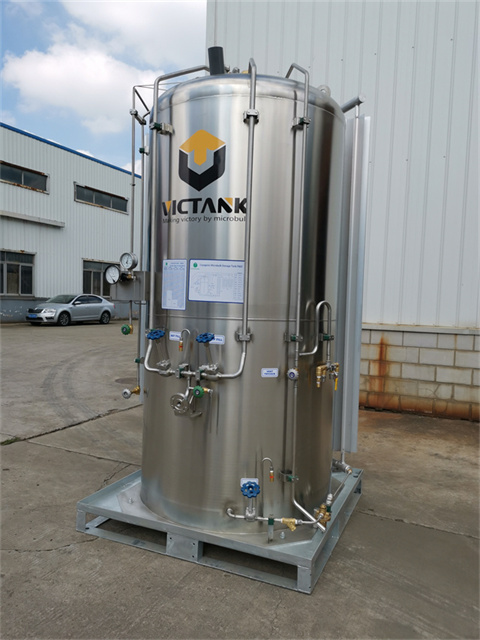

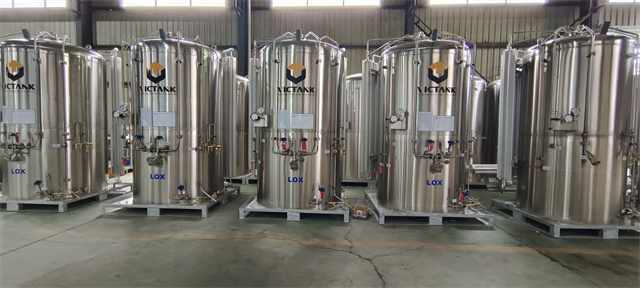

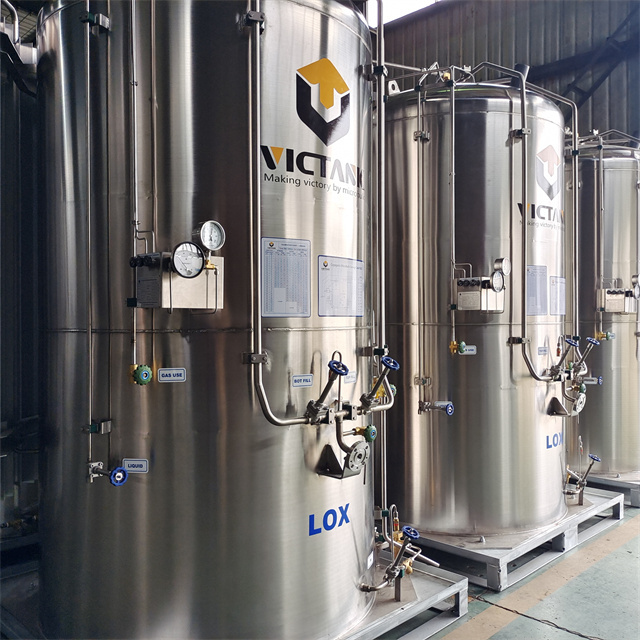

Victank microbulk tanks offer a better solution of end-to-end liquid gas delivery, replacing all your costly gas cylinders. It improves gas transportation, charging and storage management greatly. An ideal solution for medium size customers in industries, medical, cutting, lab and etc.
Designed to replace high pressure gas cylinders, VICTANK eliminates:
ASME standard 3000L-24bar | MC3000HP | |
MAWP | Mpa(psi) | 2.4(350) |
Max. Pre-set Operating Press | Mpa(psi) | 1.8(260) |
Gross Volume | L(gal) | 3031(800) |
Net Volume | L(gal) | 2879(761) |
NER(Nitrogen) | %/Day | 0.5 |
Tare Weight | kg(lbs) | 2003(4416) |
Gaseous Volume(CO2) | Nmˆ3(SCF) | 1864(65181) |
Gas delivery rate | Nmˆ3/H(SCFH) | 30(1059) |
Pallet Width "A" | mm(inch) | 1700(66.92) |
Pallet Length "B" | mm(inch) | 1700(66.92) |
Tank Diameter "D" | mm(inch) | 1508(59.37) |
Overall Height "H" | mm(inch) | 3160(124.41) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
4units 1m3 microbulk tank shipped by one 20FT container.
3units 2m3 microbulk tank shipped by one 20OT container. (open top container)
3units 3m3 microbulk tank shipped by one 20OT container. (open top container)
2units 5m3 microbulk tank shipped by one 20OT container. (open top container)
Our items are commonly identified and trusted by people and can fulfill repeatedly altering economic and social wants of 2000l lox microbulk argon in guyana - Victank, The product will supply to all over the world, such as: Grenada, Madrid, Istanbul, New York, Based on our automatic production line, steady material purchase channel and quick subcontract systems have been built in mainland China to meet customer's wider and higher requirement in recent years. We have been looking forward to cooperating with more clients worldwide for common development and mutual benefit!Your trust and approval are the best reward for our efforts. Keeping honest, innovative and efficient, we sincerely expect that we can be business partners to create our brilliant future!
