Our merchandise are commonly identified and dependable by end users and will meet continually altering financial and social desires for Making the Products of High Quality is the eternal goal of our company. We make unremitting efforts to realize the goal of "We Will Always Keep in Pace with the Time".
The microbulk supply platform is the right solution if your supply needs range from 500m3 per month to 100,000m3 per month. Microbulk storage system tank capacities range from 1000 to 5,000 liters and are able to accommodate pressure requirements of up to 500 psi. We supply storage tanks in a range of sizes and can easily change on-site installations to evolve with your growing volume requirements.
ASME standard 3000L-35bar | MBH3000VHP | |
MAWP | Mpa(psi) | 3.5(500) |
Max. Pre-set Operating Press | Mpa(psi) | 3.1(450) |
Gross Volume | L(gal) | 3031(801) |
Net Volume | L(gal) | 2789(737) |
NER(Nitrogen) | %/Day | 0.7 |
Gaseous Volume(Oxygen) | Nmˆ3(SCF) | 2226(78623) |
Gaseous Volume(Nitrogen) | Nmˆ3(SCF) | 1793(63320) |
Gaseous Volume(Argon) | Nmˆ3(SCF) | 2178(76910) |
Gas delivery rate | Nmˆ3/H(SCFH) | 75(2649) |
Pallet Width "A" | mm(inch) | 3200(125.98) |
Pallet Length "B" | mm(inch) | 1100(43.3) |
Tank Diameter "D" | mm(inch) | 1508(59.37) |
Overall Height "H" | mm(inch) | 1880(74.01) |
Width w/piping "w" | mm(inch) | 1826(71.89) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |

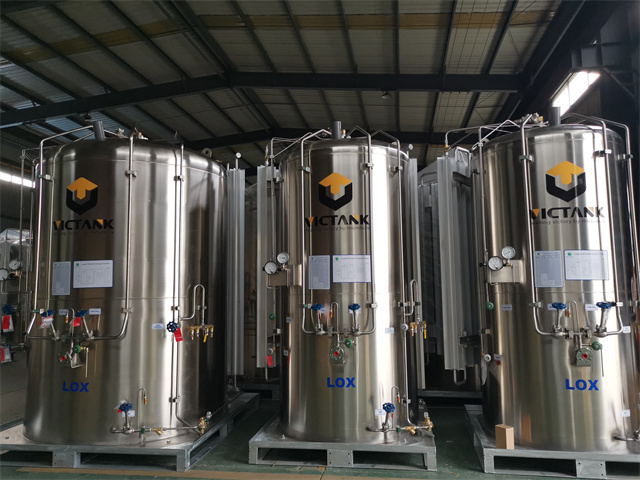

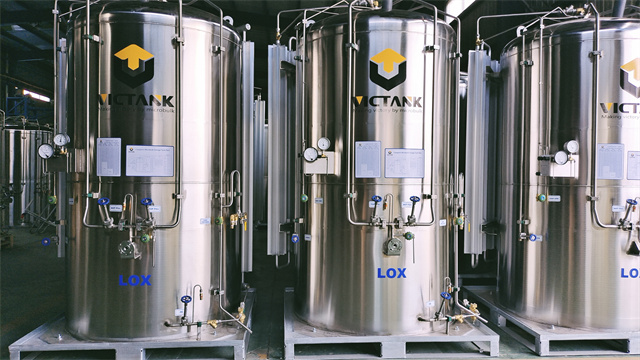

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
1units shipped by 1x20GP container.
3units shipped by 1x40GP container.
Fast and fantastic quotations, informed advisers to help you choose the correct products that suits all your needs, a short manufacturing time, responsible good quality control and distinct companies for paying and shipping affairs for 16mpa ar vertical gas tank in yemen - Victank, The product will supply to all over the world, such as: Istanbul, Turkmenistan, Congo, British, With the first-class solutions, excellent service, fast delivery and the best price, we've won highly praise foreign customers'. Our products have been exported to Africa, the Middle East, Southeast Asia and other regions.
