Our company sticks to the principle of "Quality is the life of the company, and reputation is the soul of it" for We always provide best quality products and excellent service for the majority of business users and traders . Warmly welcome to join us, let's innovate together, and fly dreams.

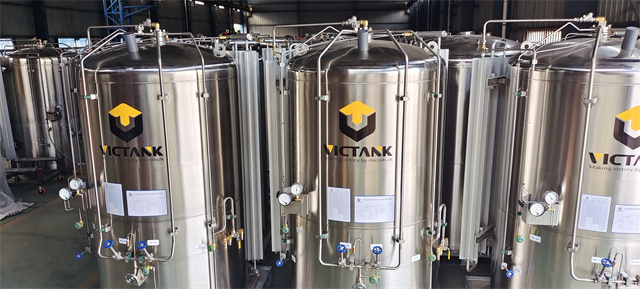

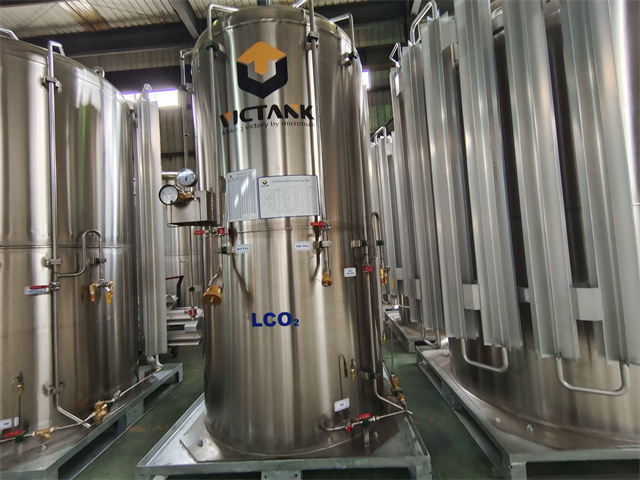

Victank microbulk tanks offer a better solution of end-to-end liquid gas delivery, replacing all your costly gas cylinders. It improves gas transportation, charging and storage management greatly. An ideal solution for medium size customers in industries, medical, cutting, lab and etc.
Designed to replace high pressure gas cylinders, VICTANK eliminates:
ASME standard 3000L-24bar | MC3000HP | |
MAWP | Mpa(psi) | 2.4(350) |
Max. Pre-set Operating Press | Mpa(psi) | 1.8(260) |
Gross Volume | L(gal) | 3031(800) |
Net Volume | L(gal) | 2879(761) |
NER(Nitrogen) | %/Day | 0.5 |
Tare Weight | kg(lbs) | 2003(4416) |
Gaseous Volume(CO2) | Nmˆ3(SCF) | 1864(65181) |
Gas delivery rate | Nmˆ3/H(SCFH) | 30(1059) |
Pallet Width "A" | mm(inch) | 1700(66.92) |
Pallet Length "B" | mm(inch) | 1700(66.92) |
Tank Diameter "D" | mm(inch) | 1508(59.37) |
Overall Height "H" | mm(inch) | 3160(124.41) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
4units 1m3 microbulk tank shipped by one 20FT container.
3units 2m3 microbulk tank shipped by one 20OT container. (open top container)
3units 3m3 microbulk tank shipped by one 20OT container. (open top container)
2units 5m3 microbulk tank shipped by one 20OT container. (open top container)
High quality Initial,and Buyer Supreme is our guideline to offer the ideal assistance to our shoppers.At present, we are striving our best to become amongst the ideal exporters inside our industry to satisfy shoppers more want for 16mpa ar vertical gas tank in doha - Victank, The product will supply to all over the world, such as: Zambia, Somalia, Islamabad, Denmark, Although continuous opportunity, we have now now developed serious a friendly relationship with many oversea merchants, such as ones through Virginia. We securely assume that the merchandise regarding t shirt printer machine is often good through a great number of having its good quality and also cost.
