16bar n2 asme tank in turkmenistan - Victank

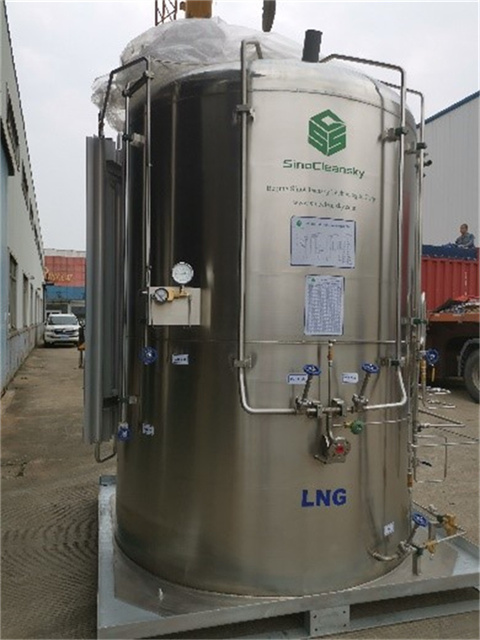

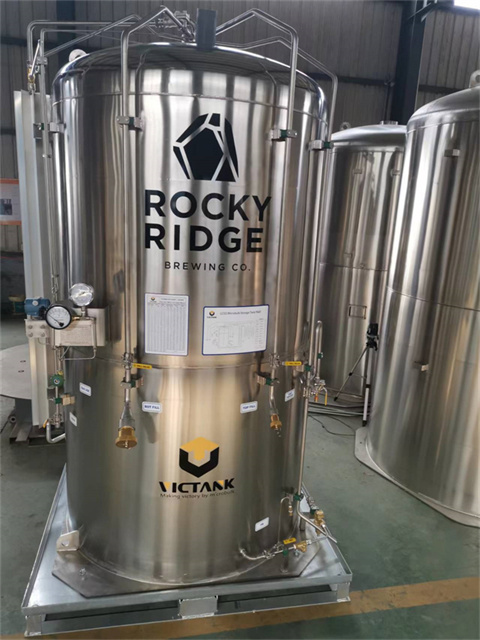

Microbulk Tank MB2000VHP
Inquire

We are pleased to establish a long-term business relationship of mutual benefit. We believe that we can be one of the most reliable Chinese suppliers for you, provide high quality products and service. We have now four leading solutions. Our products are most effective sold not only during the Chinese market, but also welcomed during the international industry.

Description

Microbulk tank is an innovative product which can provide an more economical and convenient delivery and design specially for the industry field, lab and medicine area. Compared with other cylinder, Microbulk tank is more reliable, safer, efficient and economical.

Microbulk systems are available for oxygen, nitrogen, argon, carbon dioxide, nitrous oxide(N2O), LNG and in high pressure, high flow applications including laser assist gases.

Various capacity optional 1000L, 2000L,3000L,5000L;Working pressure 16bar ,25bar,35bar.

35bar is popular for lasering cutting.

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (6)

Technical Datasheet

ASME standard 2000L-35bar

MB2000VHP

MAWP

Mpa(psi)

3.5(500)

Max. Pre-set Operating Press

Mpa(psi)

3.1(450)

Gross Volume

L(gal)

2107(557)

Net Volume

L(gal)

1938(512)

NER(Nitrogen)

%/Day

0.6

Tare Weight

kg(lbs)

1490(3285)

Gaseous Volume(Oxygen)

Nmˆ3(SCF)

1548(54655)

Gaseous Volume(Nitrogen)

Nmˆ3(SCF)

1246(44017)

Gaseous Volume(Argon)

Nmˆ3(SCF)

1514(53464)

Gas delivery rate

Nmˆ3/H(SCFH)

75(2649)

Pallet Width "A"

mm(inch)

1500(59.05)

Pallet Length "B"

mm(inch)

1500(59.05)

Tank Diameter "D"

mm(inch)

1308(51.5)

Overall Height "H"

mm(inch)

3060(120.47)

Material:

Inner vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.

3units 2m3 microbulk tank shipped by one 20OT container. (open top container)

3units 3m3 microbulk tank shipped by one 20OT container. (open top container)

2units 5m3 microbulk tank shipped by one 20OT container. (open top container)

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (7)

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. 16bar n2 asme tank in turkmenistan - Victank, The product will supply to all over the world, such as: France, Suriname, Roman, Leicester, To achieve reciprocal advantages, our company is widely boosting our tactics of globalization in terms of communication with overseas customers, fast delivery, the best quality and long-term cooperation. Our company upholds the spirit of "innovation, harmony, team work and sharing, trails, pragmatic progress". Give us a chance and we'll prove our capability. With your kind help, we believe that we can create a bright future with you together.
