VICTANK
Victank microbulk tanks offer a better solution of end-to-end liquid gas delivery, replacing all your costly gas cylinders. It improves gas transportation, charging and storage management greatly. An ideal solution for medium size customers in industries, medical, cutting, lab and etc.
Various capacity optional1000L, 2000L, 3000L, 5000L; Working pressure 16bar, 24bar, 35bar.

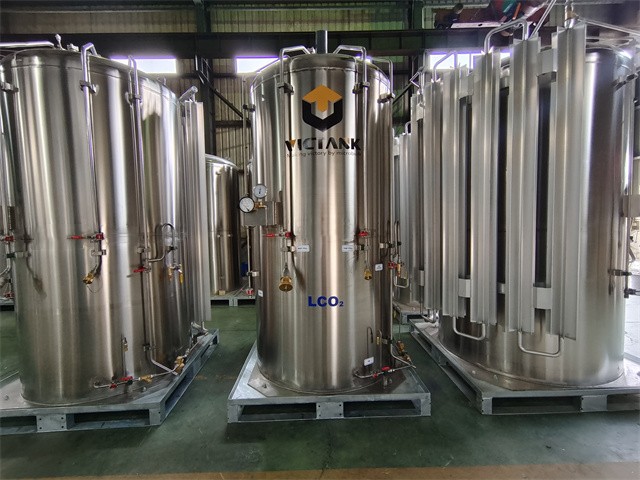

Microbulk HP tank with 24 bar working pressure is widely used for LCO2 storage.
Which is widely used in beverage, concrete engineering, etc.
ASME standard 5000L-24bar | MC5000HP | |
MAWP | Mpa(psi) | 2.4(350) |
Max. Pre-set Operating Press | Mpa(psi) | 1.8(260) |
Gross Volume | L(gal) | 5168(1365) |
Net Volume | L(gal) | 4910(1297) |
NER(Nitrogen) | %/Day | 0.4 |
Tare Weight | kg(lbs) | 2855(6294) |
Gaseous Volume(CO2) | Nmˆ3(SCF) | 3147(111137) |
Gas delivery rate | Nmˆ3/H(SCFH) | 40(1413) |
Pallet Width "A" | mm(inch) | 2100(82.67) |
Pallet Length "B" | mm(inch) | 2100(82.67) |
Tank Diameter "D" | mm(inch) | 1910(75.2) |
Overall Height "H" | mm(inch) | 3150(124.02) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Both the inner vessel and outer vessel are stainless steel, with good insulation performance.
More reliable, safe, efficient and economical, compared with high pressure gas cylinders and dewar flasks.
Victank microbulk tanks offer a better solution of end-to-end liquid gas delivery, replacing all your costly gas cylinders. It improves gas transportation, charging and storage management greatly. An ideal solution for medium size customers in industries, medical, cutting, lab and etc.
Various capacity optional1000L, 2000L, 3000L, 5000L; Working pressure 16bar, 24bar, 35bar.
Microbulk HP tank with 24 bar working pressure is widely used for LCO2 storage.
Which is widely used in beverage, concrete engineering, etc.
ASME standard 5000L-24bar | MC5000HP | |
MAWP | Mpa(psi) | 2.4(350) |
Max. Pre-set Operating Press | Mpa(psi) | 1.8(260) |
Gross Volume | L(gal) | 5168(1365) |
Net Volume | L(gal) | 4910(1297) |
NER(Nitrogen) | %/Day | 0.4 |
Tare Weight | kg(lbs) | 2855(6294) |
Gaseous Volume(CO2) | Nmˆ3(SCF) | 3147(111137) |
Gas delivery rate | Nmˆ3/H(SCFH) | 40(1413) |
Pallet Width "A" | mm(inch) | 2100(82.67) |
Pallet Length "B" | mm(inch) | 2100(82.67) |
Tank Diameter "D" | mm(inch) | 1910(75.2) |
Overall Height "H" | mm(inch) | 3150(124.02) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Both the inner vessel and outer vessel are stainless steel, with good insulation performance.
More reliable, safe, efficient and economical, compared with high pressure gas cylinders and dewar flasks.
